Motor Type Fish Feed Extruder 220V Chromium Alloy Steel Dry Way Floating

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-LM

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	50 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V 50Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
System:	PLC	Use:	Using For Aquaculture And Pet Food
Material:	Chromium Alloy Steel	Product Type:	Fish Feed Extruder
High Light:	Chromium Alloy Steel Fish Feed Extruder , Motor Type Fish Feed Extruder 220V , 50Hz Motor Fish Feed Extruder

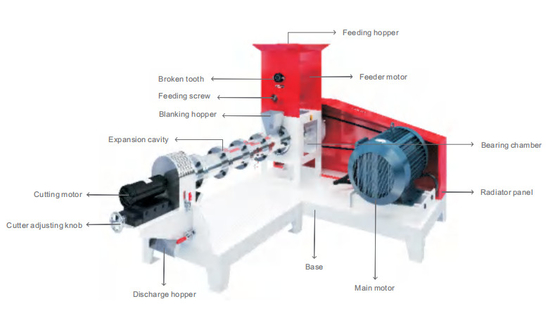

Dry way floating fish feed extruder motor type

Applications:

Fish feed pellet machine using for aquaculture and pet food.For example: fish,shrimp ,dog,cat and so on.Just change mould can make different size and shape

Freature:

The screw is made of chromium alloy steel and undergoes special heat treatment. long service life and wear-resistant.
The motor uses a standard pure copper motor that is stable and durable, and Siemens motors can be customized.
The fuselage uses environmentally friendly spray technology to resist corrosion and not easy to rust.
Machine body made of high-thickness steel plate, strong and stable, not easy to damage.
Can make different size from 1mm-12mm ,suitable for different stage of fish.

Parameter:

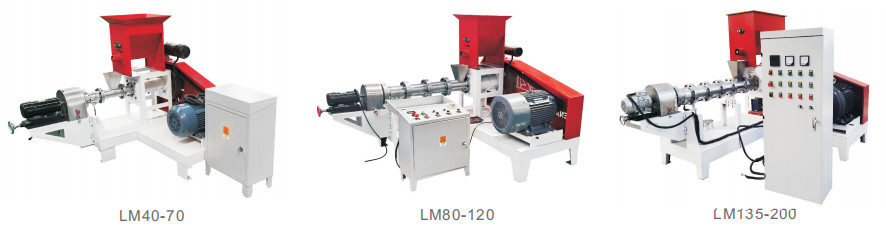

Model	Capacity(kg/h)	Main motor(kw)	Feeder motor(kw)	Screw diameter(mm)	Cutter motor(kw)	Machine size(mm)	Weiight(kg)
LM40	40-60	5.5	0.4	φ40	0.4	140010301200	240
LM50	80-100	11	0.4	φ50	0.4	147011001250	320
LM60	100-150	15	0.4	φ60	0.4	147011001250	350
LM70	180-200	18.5	0.4	φ70	0.4	165014001300	580
LM80	200-300	22	0.6	φ80	0.6	180014501300	695
LM90	300-400	37	0.6	φ90	0.8	210014501350	950
LM120	500-800	55	2.5	φ120	1.1	244019501650	1860
LM135	800-1000	85	2.5	φ135	1.5	255020501650	2300
LM160	1200-1500	90	3	φ160	2.2	310026501800	3200
LM200	1800-2000	132	4	φ200	2.5	310028501900	3800
