Wet Way Floating Fish Feed Extruder 22hp - 630hp Environmentally Friendly Twin Screw

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-TSE

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	50 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V 50Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
System:	PLC	Use:	Using For Aquaculture And Pet Food
Material:	Chromium Alloy Steel	Product Type:	Fish Feed Extruder
High Light:	Wet Way Floating Fish Feed Extruder , 630 hp Fish Feed Extruder , Twin Screw Fish Feed Extruder

Twin Screw Wet Way Floating Fish Feed Extruder

Applications:

Fish feed pellet machine using for aquaculture and pet food.For example: fish,shrimp ,dog,cat and so on.Just change mould can make different size and shape

Freature:

The screw is made of chromium alloy steel and undergoes special heat treatment. long service life and wear-resistant.
The motor uses a standard pure copper motor that is stable and durable, and Siemens motors can be customized.
The fuselage uses environmentally friendly spray technology to resist corrosion and not easy to rust.
Machine body made of high-thickness steel plate, strong and stable, not easy to damage.
Can make different size from 1mm-12mm ,suitable for different stage of fish.

Parameter:

Model	Capacity(kg/h)	Main power(HP)	Feeder motor(kw)	Screw diameter(mm)	Cutter motor(kw)	Conditioner power	Weiight(kg)

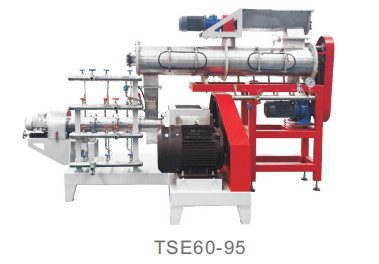

TSE60	180-200	22	0.4	φ60	0.4	0.75	540
TSE65	250-300	37	0.6	φ65	0.6	1.1	580
TSE70	350-400	55	1.1	φ70	0.75	1.5	980
TSE80	500-600	55	1.1	φ80	1.1	2.2	1200
TSE85	700-800	75	1.1	φ85	1.5	2.2	1350
TSE95	1000-1200	90	1.5	φ95	2.2	3.0	2100

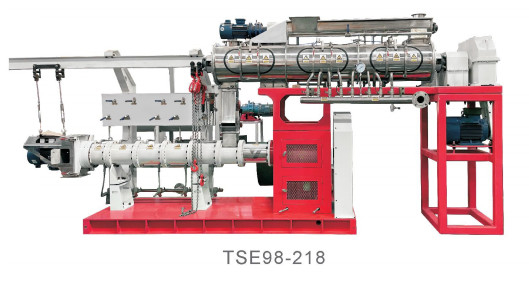

TSE98	1800-2000	110	2.2	φ98	2.2	11.0	2350
TSE128	3000-7000	160	2.2	φ128	5.5	18.5	2800
TSE148	6000-12000	250	2.2	φ148	7.5	22	3900
TSE178	12000-18000	500	3	φ178	7.5	22*2	4600
TSE218	20000-25000	630	4	φ218	11	37*2	5800
