5T Cable Tray Roll Forming Machine 2m/min For Photovoltaic Supportor

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	photovoltaic supportor forming machine 41

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	fit for shipping
Delivery Time:	45 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V Or As Customize	Weight:	About 5T
Warranty:	12 Months	Certification:	CE
Control System:	PLC With Touch Screen	Color:	Client Required
Thickness:	1.5-2.5mm	Raw Material:	Steel
High Light:	5T Cable Tray Roll Forming Machine , 2m/min Cable Tray Roll Forming Machine , Photovoltaic cable tray roll former

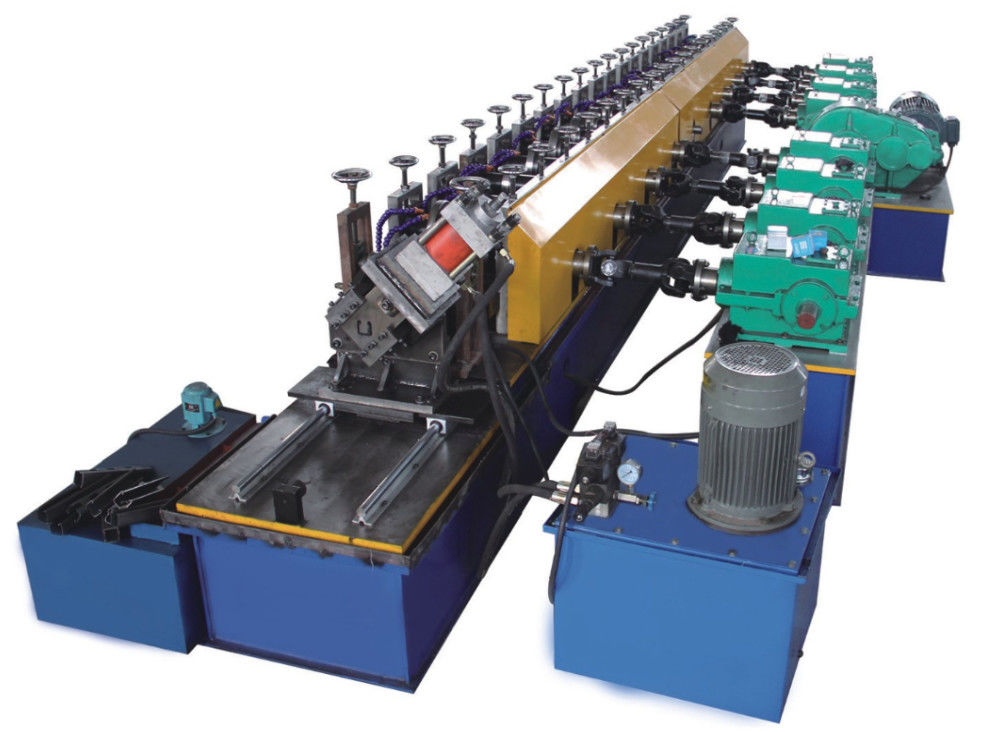

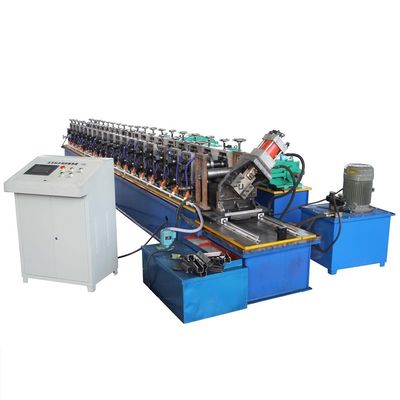

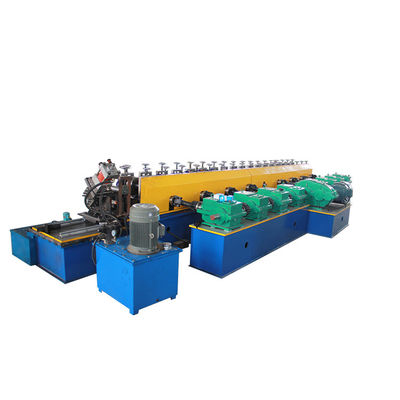

5T Cable Tray Roll Forming Machine 2m/min For Photovoltaic Supportor

Features and Structure:

* Multi-functional converter controlled speed regulation by PLC

* Main-machine interface touch screen for easy operation

* The machine can be used for different type of stud and track

* Automatic electric control system make production safety ang efficiency

* Solid shaft and high quality rollers make the machine working smoothly and endurable

* Low noise,low wasting ,energy saving and environmental

Technical parameters

Material	Raw material	Steel
	Thickness	1.5-2.5mm
Configurations	Manual Decoiler, Guiding Platform,Punching Machine,Main Machine Of Roll Forming,Cooling system,Cutting Device, Electric Motor, Hydraulic Station,PLC Control System, Run Out Table
Straightener	Yes include
Roll Forming Machine	Feeding unit	Include
	Shaft material	GB 45# steel
	Roller shaft diameter	80mm
	Rolling stations	20 stations
	Roller material	Cr12 MOV
	Forming speed	0-2m/min
	Machine frame	Middle plate welded, plate thickness of 25mm
	Transmission	By chains
	Power of main machine	22kw
Punching machine	pressure	80T
	Servo feeder	1 set
Cutting system	Cutting type	Hydraulic
	Motor power	3kw
Punching Part	63T Punching machine
Control system	Type	PLC-(Brand:Delta)
	Control off/on	Yes
Other	Weight	About 4.5 ton
	Dimension	640012001000mm
	Main body color	Blue and yellow (or as required)
	Voltage	380v-60hz-3ph(or as required)
	Total power	kw

5T Cable Tray Roll Forming Machine 2m/min For Photovoltaic Supportor 0

Package standard:

Control box and easy damage parts	protective paper and waterproof packaging material,or wooden boxes
Main forming device	waterproof material
Hydraulic pump and spare parts	paper boxes with waterproof material.
