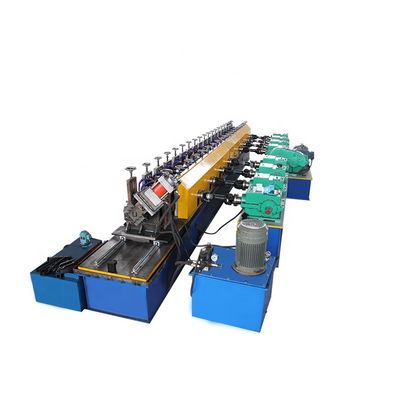

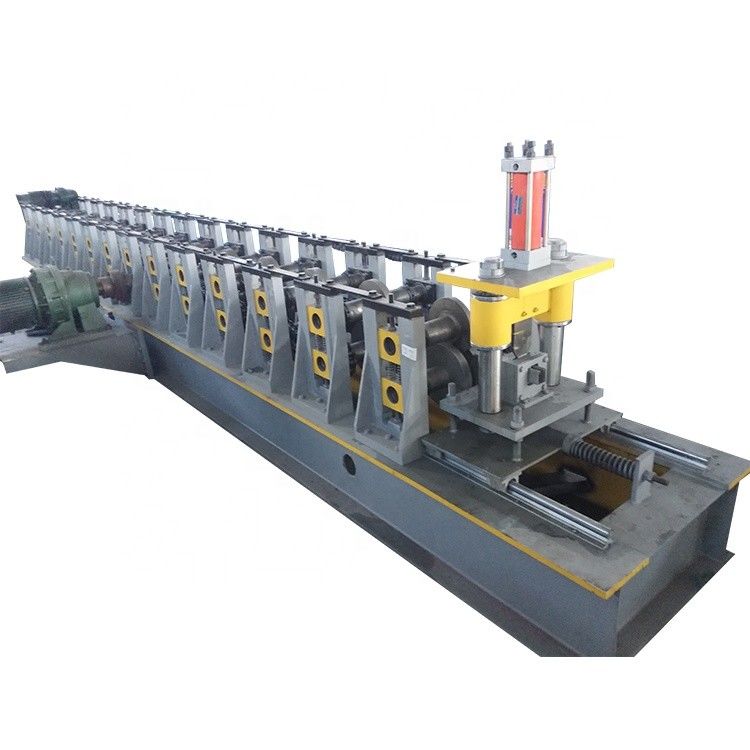

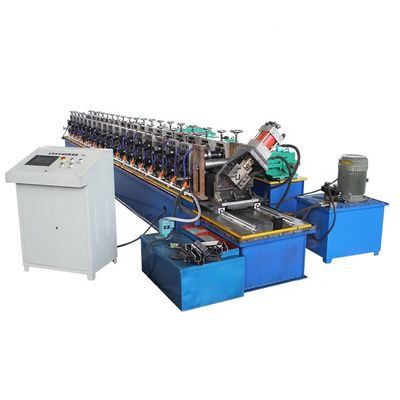

Cold Steel Cable Tray Roll Forming Machine 15m/min 6T

Cold Steel Cable Tray Roll Forming Machine 15m/min 6T

Cold Steel Cable Tray Roll Forming Machine 15m/min 6T
video
Cold Steel Cable Tray Roll Forming Machine 15m/min 6T
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Cable tray
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: As request
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 40sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Thickness: 0.3-2mm Voltage: 380V,50Hz/60Hz
Condition: New Warranty: One Year
Capacity: 12-15m/min Control: PLC
High Light:

6T Cable Tray Roll Forming Machine

,

15m/min Cable Tray Roll Forming Machine

,

CE cold formed steel machine

Cold Steel Cable Tray Roll Forming Machine 15m/min 6T





Items

Specifications

Material of coil

Material Width

200-950mm

Material Thickness

0.8-2.0mm

Uncoiler

6 tons manual

Forming system

Rolling Speed

12-15m/min

Roller Stations

24 stations

Roller Material

GCr15 quench treatment

Shaft DIA

D65mm

Main Motor Power

22kw

Cutting system

Material Of Cutting

Cr15 with quench treatment

Hydraulic cutting Power

5kw


Control System

PLC (Panasonic)





Hydraulic cutting

Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)

Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
The maximal of Diameter: 1500mm; The Maximal of loading: ≤6T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 12-15m/min, adjustable

Cold Steel Cable Tray Roll Forming Machine 15m/min 6T 0
Cold Steel Cable Tray Roll Forming Machine 15m/min 6T 1
