WENZHOU YIHENG MACHINERY CO.,LTD
Place of Origin: | China |
Brand Name: | Gracias |
Certification: | ISO,CE |
Model Number: | Cable tray |
Minimum Order Quantity: | one set |
---|---|
Price: | As discussion |
Packaging Details: | as customer's request |
Delivery Time: | 45 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 40sets per month |
Voltage: | 380V 50/60Hz 3phases | Condition: | New |
---|---|---|---|
Weight: | 6 Tons | Warranty: | 1 Year |
Thickness: | As Request | Speed: | 10-15m/min |
Color: | Blue,yellow | Control: | PLC |
High Light: | ISO Cable Tray Roll Forming Machine,10m/min Cable Tray Roll Forming Machine,15.5KW cable tray manufacturing machine |

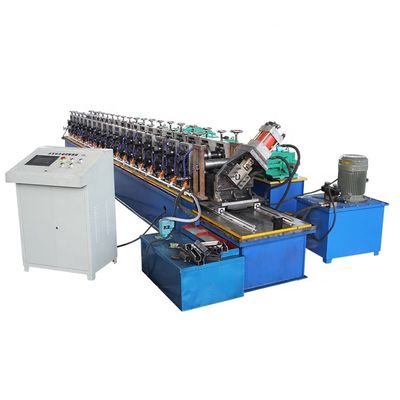

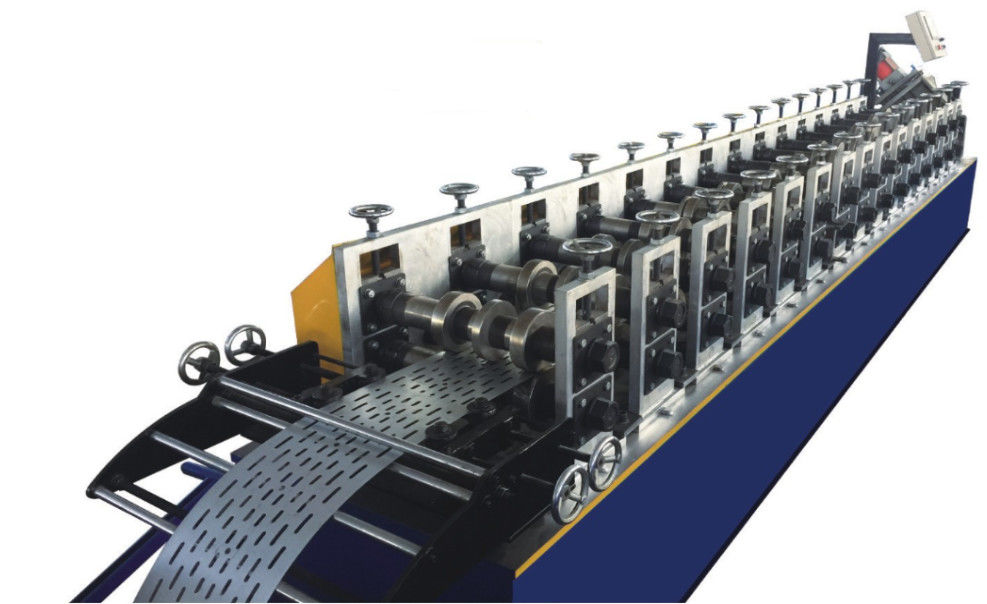

10m/min Cable Tray Roll Forming Machine 15.5KW 18 Steps
Components
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Puching device | 1SET |
3. | Roll Forming Machine | 1 Set |
4. | Guide& Feed& leveling unit | 1 Set |
5. | Hydraulic Cutting Device | 1 Set |
6. | PLC Control Box | 1 Set |
7. | Output table | 1 Set |
Technical description
Material thickness | 1-2.5mm |
Diameter of shaft(solid shaft) | 70mm |
Roller | 18 steps |
Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
Material of roller | 45# steel polished and coated with chrome HRC55-60° |
Power of main motor | 15.5KW |
Cutting | hydraulic cutting |
Hydraulic power | 7.5kw |
Driven | 1.5 inch chain |
Voltage | 380V/50Hz/3phase |
Control system | PLC Frequency Control System with touch screen |
