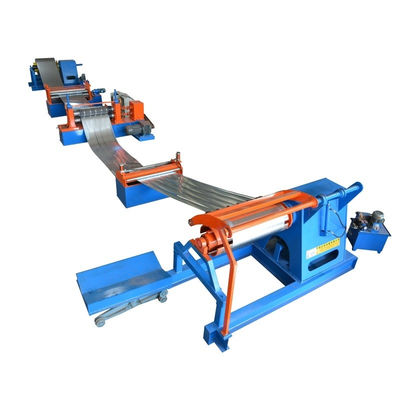

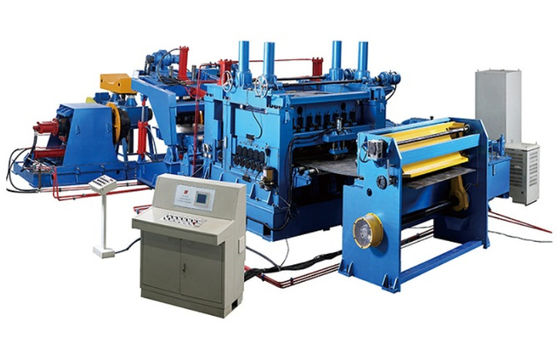

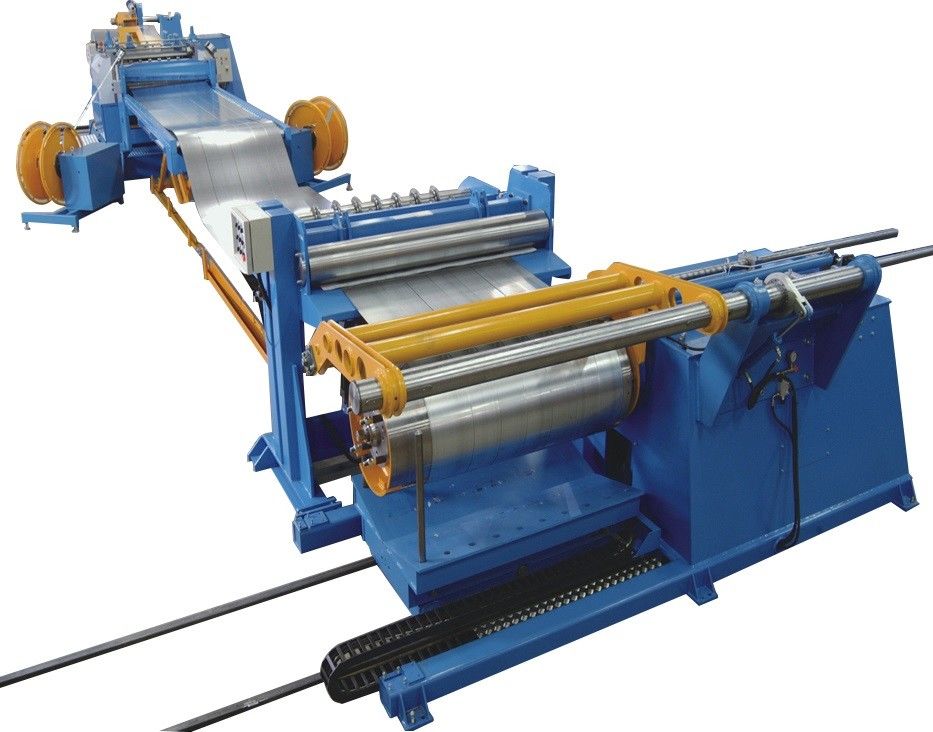

Rolled Steel Coil Slitting Machine Equipment 10T 20m/min

Equipment

1) Hydraulic decoiler  :1 set

2) Leveling   :1 set

3) Slitter :1 set

4) Scrap winder :2 sets

5) Shearing :1 set

6) Tension stand :1set

7) hydraulic recoiler with Car :1 set

8) Control system :1set

9) Hydraulic system :1set

Hydraulic decoiler

² Function:de-coil the coil material and make the material go into the next machine.

1) Inner diameter :450-550mm

2) Out diameter 1200mm

3) Width 1500mm

4) Capacity :10T

5) Motor :7.5kw

Leveling

1) Stations:up 6,bottom 7

2) Diameter:100

3) Material :45#

4) Motor :3kw

 Slitting

² Function: slit the coil material into small strips.

1) Diameter:100mm

2) Speed:30m/min

 Hydraulic reoiler with Car

Consist of base, bearing frame, recoiler shaft, the expansion device of hydraulic recoiling, the expanded recoiling plate, movable arm bearing, simple supporting

1) Inner diameter :450-550mm

2) Out diameter 1200mm

3) Width 1500mm

4) Weight :10 T

5) Motor :7.5kw

Tension stand

Tension the strips

Control part

Brand :Delta

Touch screen

Working size

25x 4m

Container

1x 40’  1x 20’
