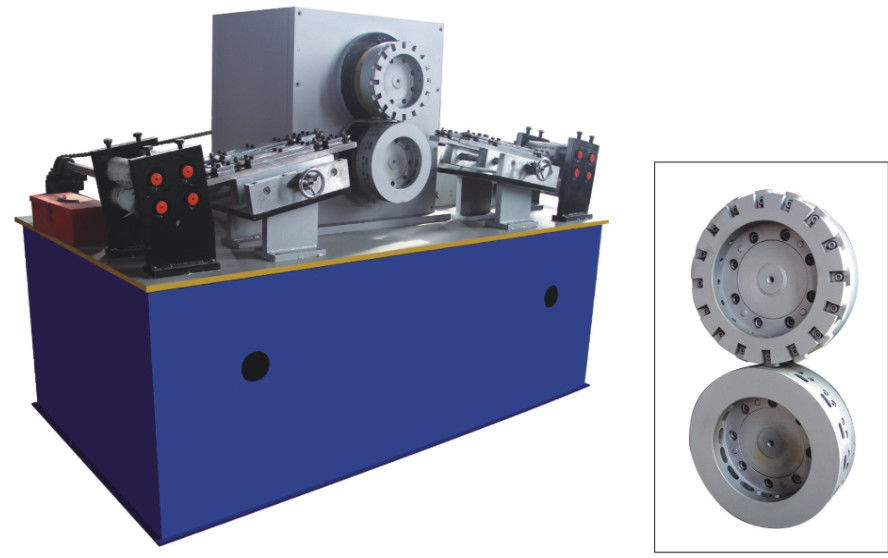

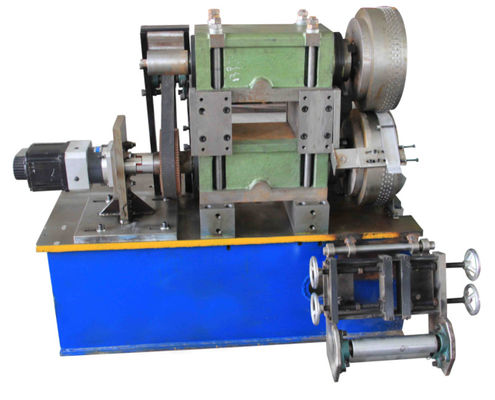

220V Cable Tray Roll Forming Machine 5.5KW Rotary Punching

220V Cable Tray Roll Forming Machine 5.5KW Rotary Punching

Rotary punching is a brand new technology of punching plate with high efficiency, energy and material saving.There are main advantages of it:

1. The machine has high speed,which can reach to 100m/min.The rotary punching

machine has higher efficiency than traditional mechanical punching machine.

2. The machine can offer unified and repeated punching pattern.

3. It adopts the rolling technology of low noise and no vibration.There is only the

sound of the motor.

4. The mould can be used for a longer time than traditional punching machine

because of the processing technology.

High speed rotary angle iron hole hydraulic press punching machine:

1. Put all necessary parts on the right location,make the ground falttening.
2. Connect electric wires,use 6-8 mm² support line and keep grounding.
3. Fill hydraulic oil in the pump.not too full,three quarters are ok.
4. Feed raw materil into the machine slowly,make it run smoothly then automatic.

5. Pay attention to final sheet collection,do not scretch it or hurts people.



• Description of application effect

1. High working speed.

2. Nice performance.

3. High safety level.

4. Energy saving.

5. Automatic control.

6. Low noise.

7. Suitable for different metal material
