30T Stone Coated Roof Tile Machine CE Production Line

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	stone coated roof making machine

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	as your request
Delivery Time:	50-70 work days
Payment Terms:	L/C, T/T
Supply Ability:	10sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380v50/60hz	Condition:	New
Use:	Roof	Warranty:	365 Days
Control System:	Plc	Feed Width:	1220mm, 915mm, 900mm, 1000mm, 1250mm
Thickness:	Any	Weight:	About 30ton
High Light:	30T Stone Coated Roof Tile Machine , 2.2kw Stone Coated Roof Tile Machine , CE roof tile production line

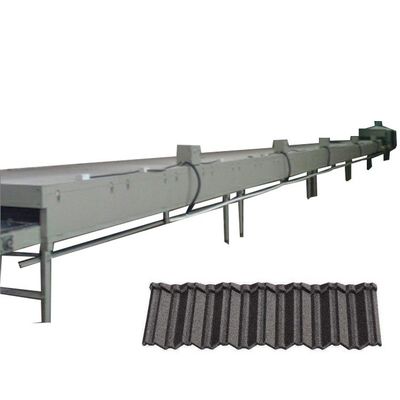

30T Stone Coated Roof Tile Machine CE Production Line

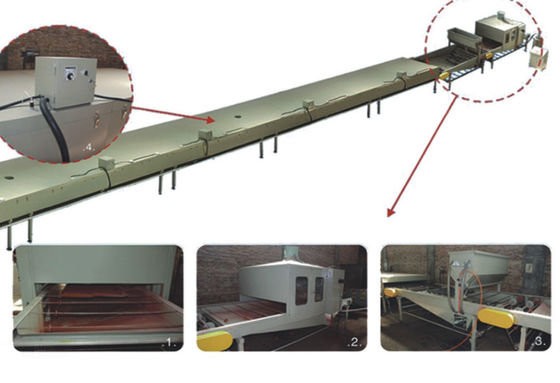

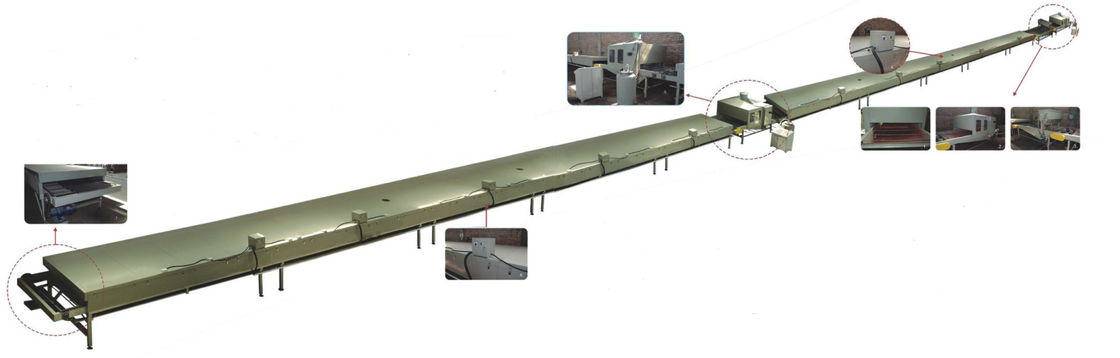

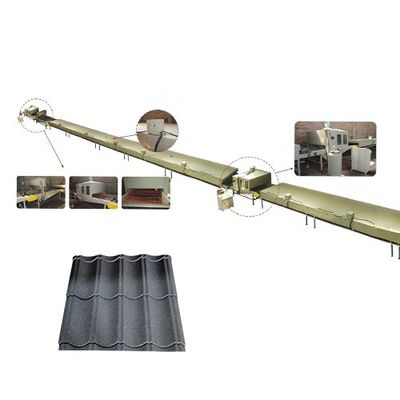

Processing flow diagram stone coated step roof machine

Flattening-Slitting-Cutting→Trimming→Pressing→Automatic bottom glue spraying equipment→

Automatic Sandblasting Room→First drying room→Automatic surface glue spraying equipment→

Second drying room equipment component

Component and Details

(1)Automatic bottom glue spraying equipment,

Outside Dimension	4000 × 1350 × 850mm(LWH)
Transmission	2.2kw,variable-frequency,adjustable-speed,motor0-32R/Min
Conveying device	Beciprocating chain conveys
Automatic glue spraying assembly	with motor 0.06kw
Adsorption of dust removal equipment	1 set
Air compressor	1 set 0.9m
Automatic pressure glue canister	1 set range of adjustable pressure 0.1-0.6MPa
Automatic glue spraying gun	4 sets
Fill glue gun	5 sets
Glue gun stand	1 set

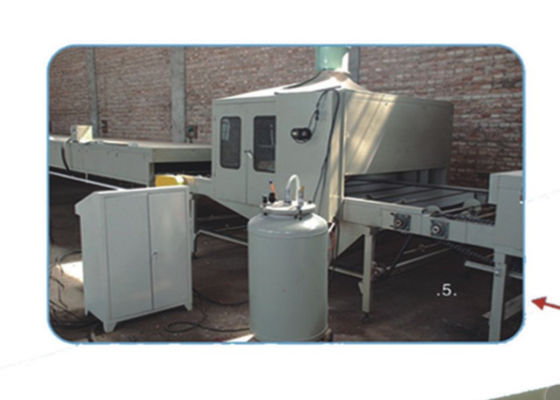

(2)Automatic sandblasting room ,

Outside Dimension	3000 ×1850 ×700mm(LWH)
Transmission	With glue spraying equipment compound chain transmit
Conveying device	Compound chain transmit
Automatic sand hopper	1 set dimension 550600500mm
Automatic rising machine	1 set with rising height 1.9m power 300kg/h
Sun-blasting gun	4 sets

(3)First drying room,

Outside Dimension	25000 ×800 ×1200mm(LWH)
Frame type heat preservation wall	Fill up with heat preservation material which is bended with 1mm carbon steel
Automatic temperature controller	2 sets,range of adjustable temperature 0-160°C
Infrared fluorescent tube	50 pcs
Conveying device	Reciprocating chain conveys
Cooling device	1 set

(4)Automatic surface glue spraying equipment,

Outside Dimension	3000 ×850 ×700mm(LWH)
Automatic glue spraying gun	2 sets
Automatic spraying assembly	1 set range of pressure 0.1-0.6MPa
Adsorption of dust removal equipment	1 set
Manual spraying gun	5 sets

(5)Second drying room equipment,

Outside dimension	30000 ×850 ×700mm(LWH)
Frame type heat preservation wall	Fill up with heat preservation material which is bended with 1mm carbon steel
Conveying device	Reciprocating chain conveys
Infrared heat tube	50 pcs
Automatic temperature controller	2 sets,range of adjustable temperature 0-160°C
Conveying device	Reciprocating connection conveys 30m
Cooling device	1 set
Automatic printing code and marking	1 set of automatic printer
