ISO Stone Coated Roof Tile Machine , 30T Manual Roof Tile Making Machine

ISO Stone Coated Roof Tile Machine , 30T Manual Roof Tile Making Machine

ISO Stone Coated Roof Tile Machine , 30T Manual Roof Tile Making Machine
video
ISO Stone Coated Roof Tile Machine , 30T Manual Roof Tile Making Machine
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: Stone coated roof
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: as customer's request
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Use: Roof Warranty: 1 Year
Weight: 30T Control System: PLC Control System
After-sales Service Provided: Online Support,Video Technical Support Profiles: As Customers Requirement
High Light:

ISO Stone Coated Roof Tile Machine

,

50Hz Stone Coated Roof Tile Machine

,

30T Manual Roof Tile Making Machine

ISO Stone Coated Roof Tile Machine 30T Manual Roof Tile Making Machine

1. Processing flow diagram FX stone chip coated metal roof tile sheet roll forming machine



Flattening-Slitting-Cutting→Trimming→Pressing→Automatic bottom glue spraying equipment

→Automatic Sandblasting Room→First drying room→Automatic surface glue spraying equipment

→Second drying room equipment component





2. Technical parameters

Leveling-Slitting-Cutting Machine



1.Flattening-Slitting-Cutting Machine

1. 5t manual decoiler

2. aa: 45# steel, outer diameter 85mm

3. Number of shaft: feeding step: 1 piece

4. Leveling: up: 5 pieces, down: 6 pieces

5. Blade material: Cr12 steel with quenched treated 60-62°C



Automatic Bottom Glue Spraying Equipment

1. Closed automatic spraying glue system
2. Outside Dimension:4000*1350*850mm(L*W*H)
3. Structure:Channel steel ,welded
4. Conveying device:Reciprocating chain conveys
5. Adsorption of dust removal equipment:1 set
6. Air compressor: 1 set, 7.5kw, air output is 1m³/min
7. D46 high-pressure airless spraying system 1 set (German technology)
8. Automatic high-pressure airless spraying gun: 1 set (Japanese technology)
9. High-pressure airless manual spraying gun:1 set(Japanese technology)
10. Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa
100L stainless charging basket 1 piece



Automatic Sandblasting Room

1. Outside Dimension :3000*1850*700mm(L*W*H)
2. Structure:Channel steel ,angle steel ,welded
3. Transmission:With glue spraying equipment compound chain transmit
4. Conveying device:Compound chain transmit
5. Air compressor: 1 set, 18.5kw, air output is 3m³/min
6. High-pressure sand suction system: 1 set, sand suction is 1T/hour
7. Sand hopper: 1 set, dimension:550*600*500
8. Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC



First Drying Room

1. Outside Dimension:4000*1350*850mm(L*W*H)
2. Structure:Channel steel ,welded
3. Conveying device:Reciprocating chain conveys
4. Adsorption of dust removal equipment:1 set
5. Air compressor: 1 set, 7.5kw, air output is 1m³/min
6. D46 high-pressure airless spraying system 1 set
7. Automatic high-pressure airless spraying gun: 1 set
8. High-pressure airless manual spraying gun:1 set
9. Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa
10. 100L stainless charging basket 1 piece





Automatic Surface Glue Spraying Equipment

1. Outside Dimension :30000*850*700mm(L*W*H)
2. Structure:carbon steel welded
3. Frame insulation wall: 30 meters’ long, 1mm carbon steel plate bending forming filled with cotton insulation
4. Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°
5. Infrared fluorescent tube:50 pieces
6. Conveying device: Reciprocating chain conveys 30m
7. Cooling device:1 set
8. Total equipment matches total control station 2 sets (Control system)
9. Productivity:3-6m/min Calculate as 1.2m per piece,eight hours,produce 1500pcs every day
10. Whole machine power:130kw

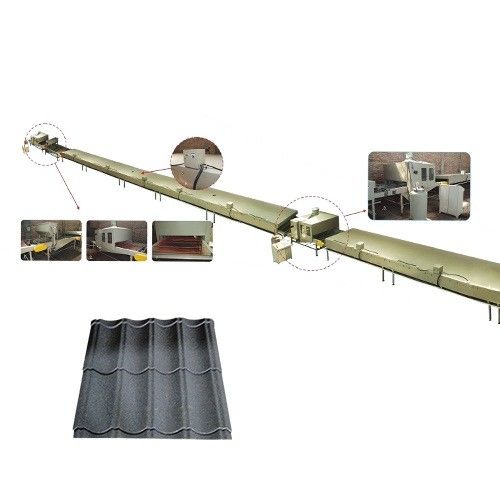

ISO Stone Coated Roof Tile Machine , 30T Manual Roof Tile Making Machine 0

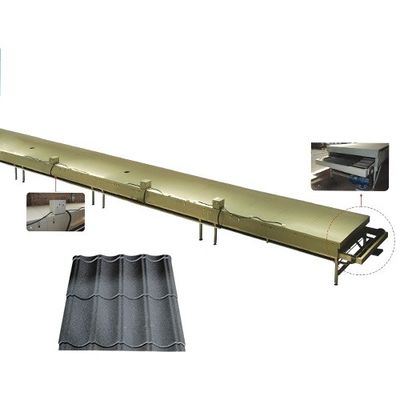

ISO Stone Coated Roof Tile Machine , 30T Manual Roof Tile Making Machine 1
