Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption

Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption

  • Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption
  • Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption
  • Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption
Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: Arch roof
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: One 40'HQ
Delivery Time: 45-60 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Use: Roof Warranty: One Year
Control System: PLC Control System Thickness: 0.8-1.5mm
High Light:

Arch Stone Coated Roof Tile Machine

,

CE Stone Coated Roof Tile Machine

,

13m/min roof sheet forming machine

Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption



No beam-column arched architecture with its beautiful appearance,modelling,lightweight structures.

The characteristics of high strength more applications in various large-scale places.

My company is developed by molding column arch type line with two main arch machine part.



Advantages for my machine:

1. Rollers and shafts: all solid.

2. Hydraulic cutting with double pumps.

3. Siemens PLC control system, with 7” touchscreen, Calculation system(La marca famosa)

4. With shock absorption function.

5. With bumper to protect the machine

6. Total weight: around 12 tons



Suitable material galvanized steel, colored steel, etc
Coil thickness 0.8-1.5mm
Roller stands 14 rows
Totally power 18.5kw
Power Main Power:7.5kw;Hydraulic power:4.0kw; bending power:1.5kw*2 Curving power:4.0kw
Roller material Galvanized high grade #45 steel , Quenched HRC58-62
Shaft material Galvanized high grade #45 steel , Quenched HRC58-62
Cutting Blade material Cr12 steel
Machine speed forming speed 8-13m/min
Bending speed 13m/min
Span ≤38m
Power supply AC380V, 60Hz, or as per your requirement
Shipment 1*40HQ

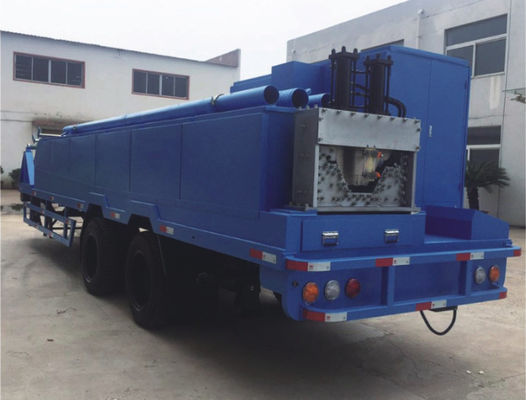

Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption 0



Working steps

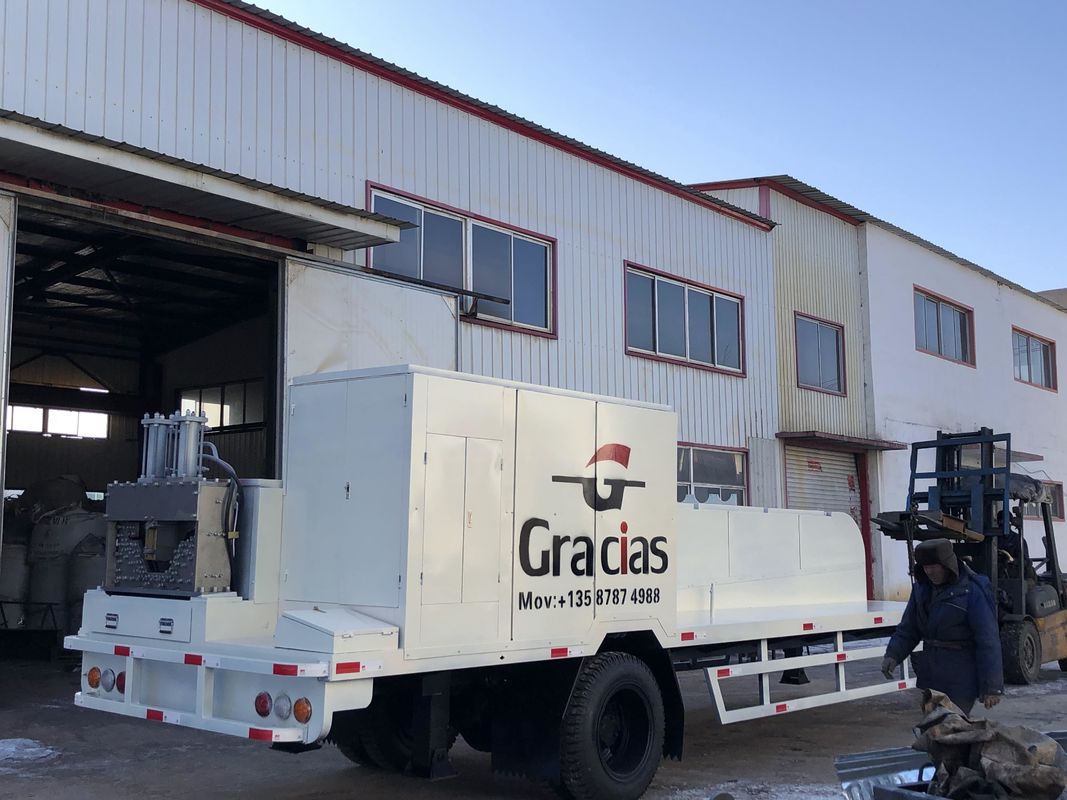

Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption 1

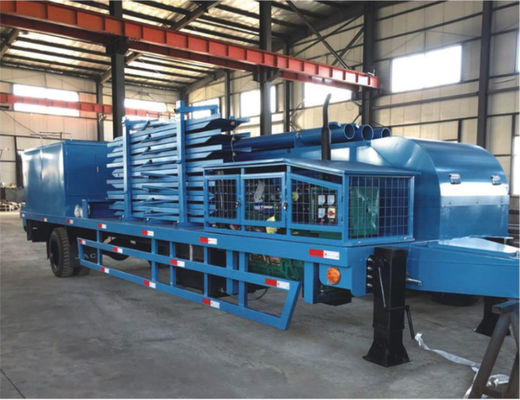

Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption 2



Profile

Arch Stone Coated Roof Tile Machine 13m/min Shock Absorption 3
