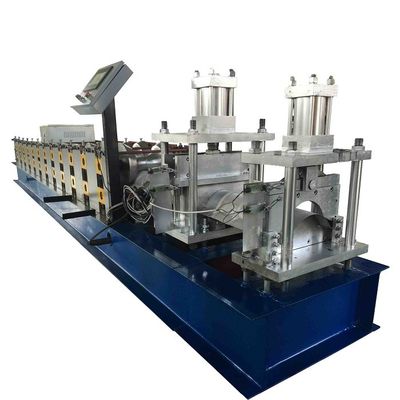

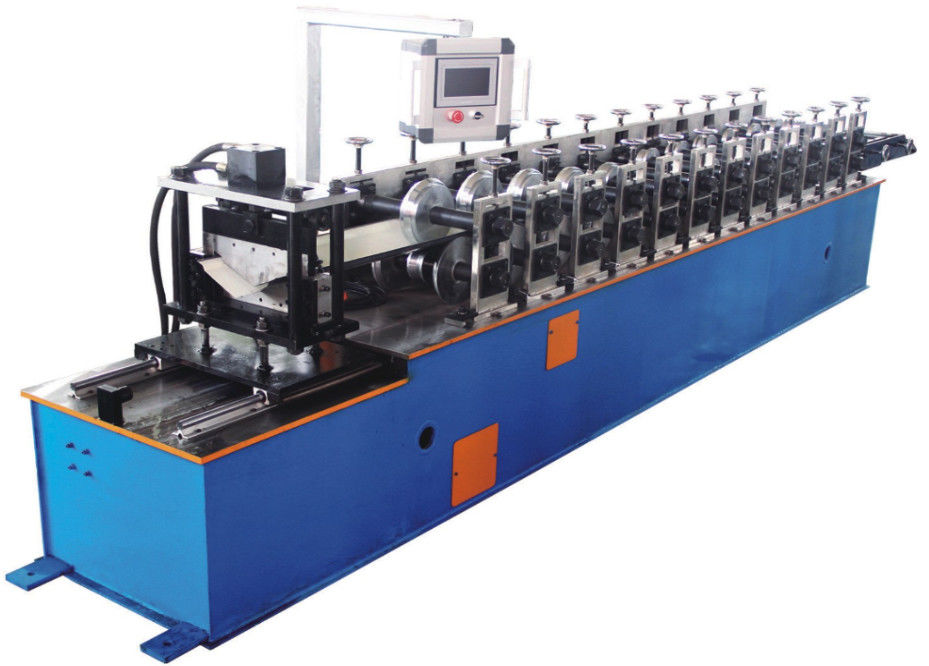

Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min

Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min

  • Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min
  • Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min
  • Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min
  • Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min
Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Ridge cap forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: fit for shipping
Delivery Time: 30-50 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: 5.5t Tile Type: Colored Steel,Galvanized Steel (GL)
Use: Produce Ridge Cap Tile,the Steel Structure Warranty: 12 Months
Control System: PLC System Thickness: 0.3-0.7mm
High Light:

Galvanized Ridge Cap Roll Forming Machine

,

5.5kw Ridge Cap Roll Forming Machine

,

10m/min tile roll forming machine

Galvanized Ridge Cap Roll Forming Machine 5.5KW 10m/min



1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching machine

---cutting---product to stand



2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),

hydraulic system,product stand.



3. Technical parameters

1) Profile

thickness:0.3--0.8mm



2) inner tight decoiler

coil inner diameter 450mm--550mm
max width of coiling 1250mm
max weight of loading 5000kg



3) main forming machine

Shaft material 45# steel,bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 8--10m/min
Voltage 380v,50hz
Roller station 15



4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.



5) control system

A. PLC: taida form Taiwan

B. Coder:from south korea



6) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw



4. Spare Parts

1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2) Rubber mat 1 pcs;

3) Bolt spanner 1 pcs



Detail Show:
1. rollers of the ridge cap roll forming machine
2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale

2. hydraulic cutting system of the forming machine
2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale

3. step-formed mechanism:(hydraulic)
2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale

4. feeding and leveling:
2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale

5. PLC control box and hydraulic pump:
2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale

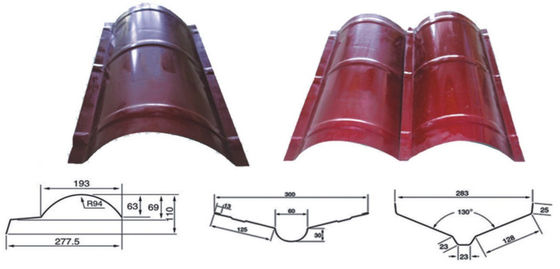

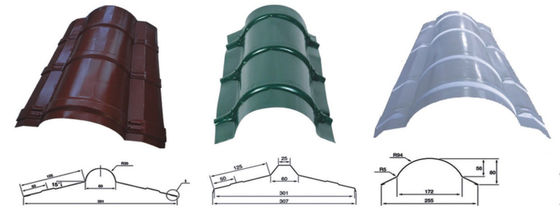

6. finished products show:
2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale2-3m/min Production Galvanized Steel Sheet Ridge Roll Forming Machine For Sale
