Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine
video
Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: 60/27*28
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 20-35work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 40sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Tile Type: Steel Condition: New
Usage: Building,Steel Construction Name: Light Keel Forming Machine
Feeding Thickness: 0.3-0.8mm Voltage: 380V.50HZ.3Phase
Warranty: 1 Year,we Will Provided Technical Support For The Whole Life Control System: PLC With Touch Screen
High Light:

Metal Ceiling Roll Forming Machine

,

25m/min Ceiling Roll Forming Machine

,

60 Drywall Roll Forming Machine

Metal Ceiling Roll Forming Machine 60 Drywall Roll Forming Machine





Product Description
NO. Item Parameter
1 material color steel/galvanized steel/aluminium(if G550 please check with us)
2 feeding width 80mm,114mm or as customers' request
3 material thinkness 0.3-0.6mm or as customers' request
4 machine size 4.5*1.2*1.5
5 machine weight 2.5T
6 voltage requirement 380V60Hz3P
7 working speed 10-25m/min
8 Frame Cast steel plate screwed
9 forming steps 10steps
10 rollers GCr12MoV
11 shaft 45#steel,diameter 40mm
12 PLC Delta
13 motor 4kw
14 pump 4kw
15 cutter Cr12 HRC 58-62℃
16 after-sale service 24h*7days*1year’s on line and engineer service overseas
17 warranty

1year









Accessory of C&U double layers tile roll forming machine
1 Manual decoiler
2 Main roll forming machine
3 Hydraulic pump
4 PLC control system
5 Cutting device
6 Manual table



decoiling-guide feeding-main roll forming-cutting-finished products

FX 60*27*28 C U Double Layers Keel Roll Forming Machine

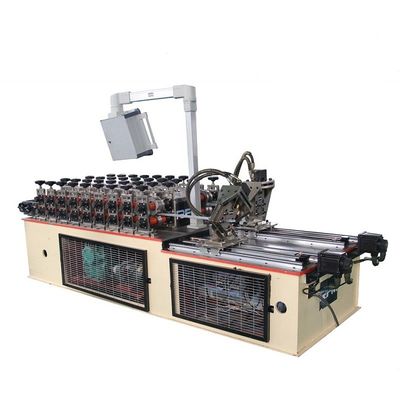

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine 1

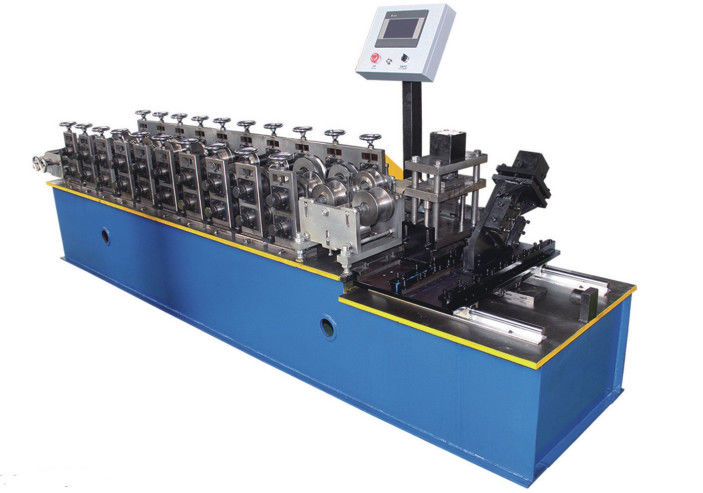

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine 2

Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine 3
