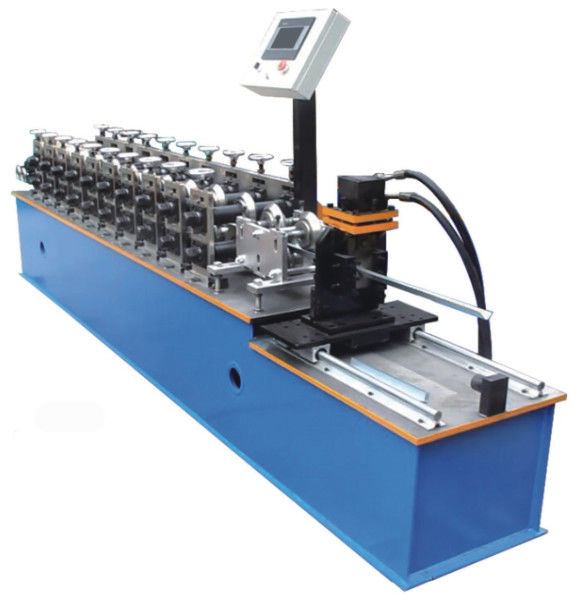

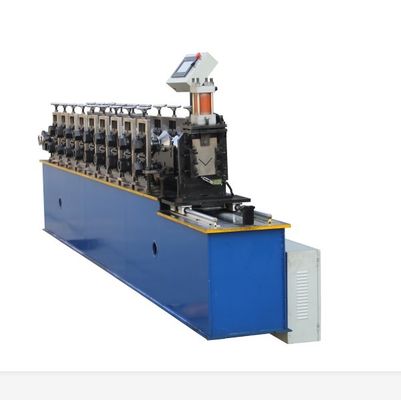

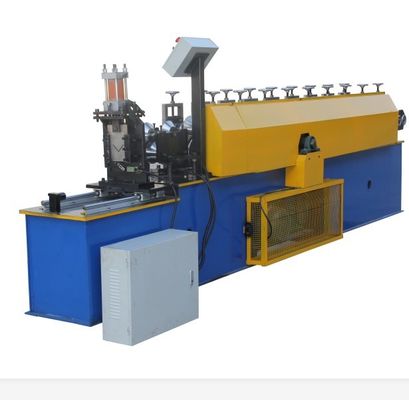

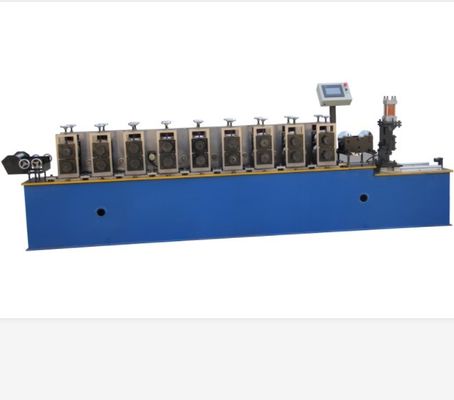

15m/min Sheet Metal Roll Forming Machines Cr12 For Wall Angle

15m/min Sheet Metal Roll Forming Machines Cr12 For Wall Angle

15m/min Sheet Metal Roll Forming Machines Cr12 For Wall Angle
video
15m/min Sheet Metal Roll Forming Machines Cr12 For Wall Angle
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: Wall angle machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: as request
Delivery Time: 45 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V.50HZ.3Phase,at Buyers Option Speed: 15m/min
Condition: New Warranty: 12 Months,1 Year
Weight: 3.5T Color: Customizable
After-sales Service Provided: Online Support,Video Technical Support Control System: Totally Automatic PLC Control System
High Light:

cr12 Sheet Metal Roll Forming Machines

,

15m/min Sheet Metal Roll Forming Machines

,

Hydraulic CE metal deck roll forming machine

15m/min Sheet Metal Roll Forming Machines For Wall Angle



Working flow chart:

Manual Material Uncoiler---Feeding Platform---Main Roll Forming Machine---Computer Control Box

---Hydraulic Station---Automatic Cutting System---Finished Products Receving Table



Specifications:

wall angle roll former machine
Equipment operation Automatically
Voltage 380V,50/60Hz
Thickness of material sheet 0.3--1.5mm(normally)
Width of material sheet As drawing
Control system By PLC(imported brand)
Cutting method Hydraulic cutting
Material of roller station Gcr12 with heat treatment
Formed width As drawing
Working speed 15m/min
Length of finished product set in computer, machine will cut automatically
Transmission type gears or chain



Name SET Use TO
1.5 T Manual decoiler 1 set

Loading the coil


Main forming machine and cutter 1 set

12 stations forming the shape.Cutting the length as request.



Raw material rough turning→quenched→polish by grinding maching→CNC fine turning
PLC control system 1set

1.Language as request



2.Text and touch screen for chose



3.Brand PLC:Panasonic /Delta /Mitsubish
Oil pump 1 set

Make coolling as request


Product stand 1 set

Stand finishing product


Remark

All equipment can order as customer’s request

European quality wall angle roll former machine

15m/min Sheet Metal Roll Forming Machines Cr12 For Wall Angle 1

15m/min Sheet Metal Roll Forming Machines Cr12 For Wall Angle 2



European quality wall angle roll former machine
