CE Metal Sheet Forming Machine 15m/min For Supermarket Storage Shelf

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	ISO,CE
Model Number:	Storage rack

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	fit for ocean shipping
Delivery Time:	45 work days
Payment Terms:	T/T, L/C
Supply Ability:	30sets per month

Contact Now

Warranty:

1 Year

Voltage:

380V 50Hz 3phases

Condition:

New

Control:

PLC

Working Speed:

15-20m/min

Thickness:

0.8-1.2mm

High Light:

Configurations	manual decoiler 1 set,roll forming machine 1set, Hydraulic cutting system, PLC control system, run out table 1set, spare parts
Material	Feeding width	as request
	Effective width	as request
	Raw material	PPGI/GI
	Thickness	as request

Manual decoiler	Inner diameter:450-550mm				Expand by band
	Outer diameter:1500mm
	Max Coil width:1250mm
	Capacity: 5T
	Decoiler dimension: 2010.81.1m
	Decoiler weight:152KGS
	Quantity: 1set
Main Forming machine	Forming steps			16 steps
	Shaft diameter			50mm
	Machine stand			Middle plate welded
	Machine frame			H steel welded
	roller material			45#
	shaft material			CR12
	Work speed			15-20m/min
	Transport			By gear
	Power of main machine			3kw
	Voltage			380V-50HZ-3P(as required)
	Machine dimension			4.5x 1.4x 1.5
	Machine weight			About 4.5T
	Machine color			Yellow and blue(as required)
Hydraulic system	Type of cutting			Hydraulic
	Cutting motion			Moving cutting
	Cutting tolerance			±1mm
	Cutter			Cr12
	Cutter quantity			1 set
	Working pressure			15-20MPA
	Hydraulic oil			46#
	Hydraulic oil weight			50-100KGS
	Hydraulic power			3kw
	Cutting length			As required
	No distorting or wasting. High level safety factor.
Control Device	control		By PLC
	PLC language		English and Chinese (or as required)
	Brand		Delta
	PLC screen		Touch screen or text screen
	Function		Automatic length and quantity measurement,
Run out table	Dimension		31.30.45m
	Weight		45KGS
Spare parts	Fuse	2 pieces
	Relay	2 pieces
	Travel switch	2 pieces
	Tools	1 set

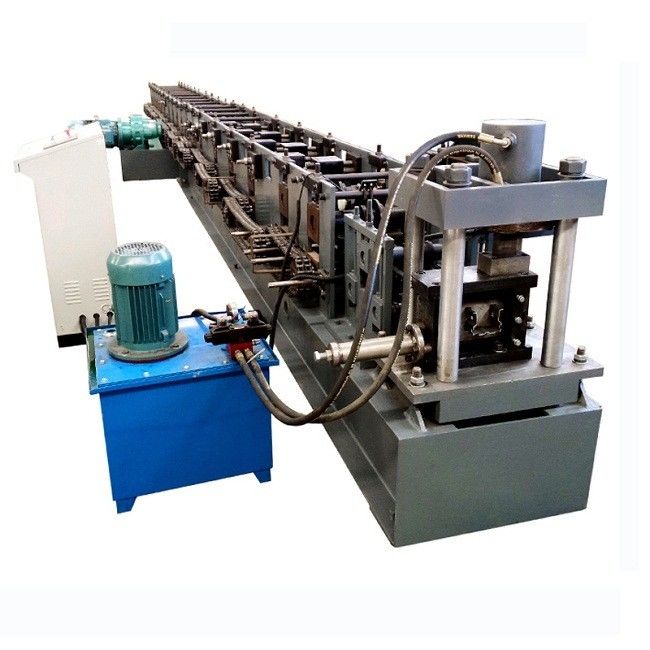

CE Metal Sheet Forming Machine 15m/min For Supermarket Storage Shelf

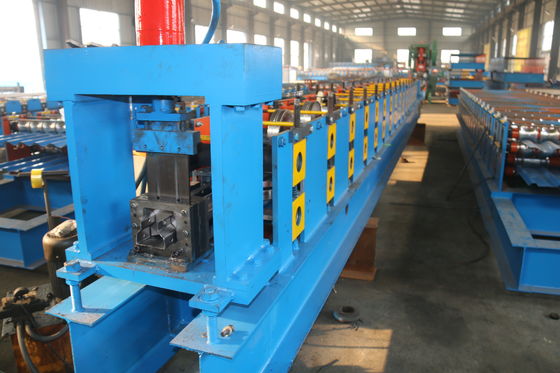

CE Metal Sheet Forming Machine 15m/min For Supermarket Storage Shelf

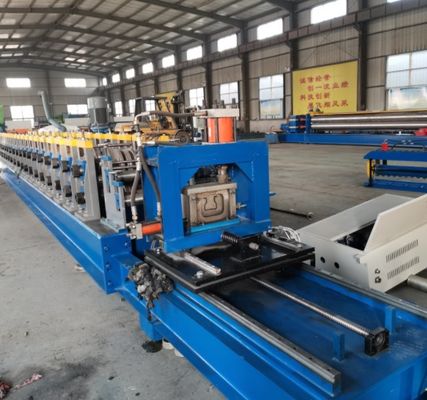

CE Metal Sheet Forming Machine
