Three Waves Highway Guardrail Roll Forming Machine 15T

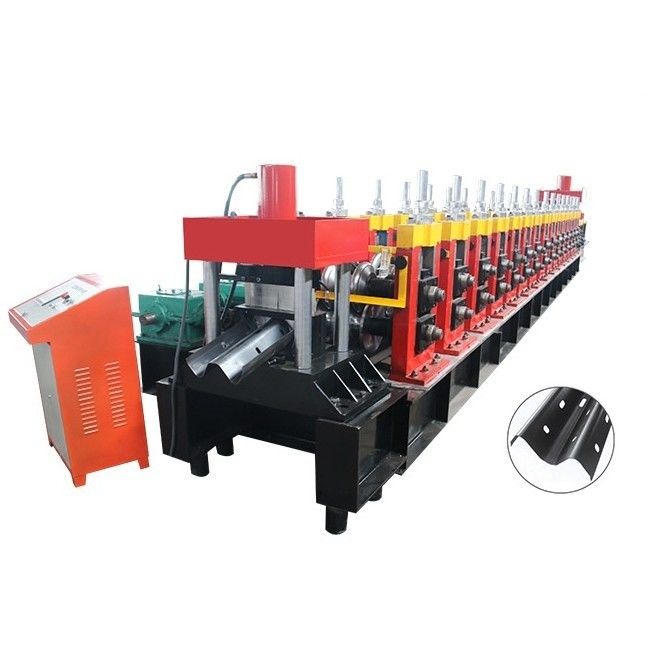

Three Waves Highway Guardrail Roll Forming Machine 15T

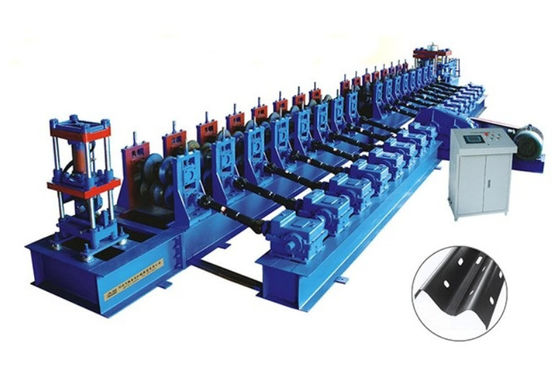

  • Three Waves Highway Guardrail Roll Forming Machine 15T

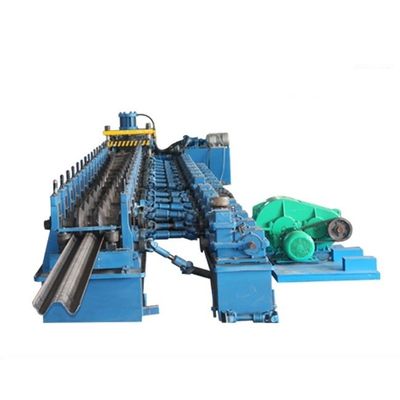

  • Three Waves Highway Guardrail Roll Forming Machine 15T
  • Three Waves Highway Guardrail Roll Forming Machine 15T
Three Waves Highway Guardrail Roll Forming Machine 15T
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Highway guardrail
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 45-60 work days
Payment Terms: T/T, L/C
Supply Ability: 15sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Warranty: One Year Weight: 15 T
Voltage: 380V 50Hz 3phases Condition: New
Color: Customers Requirement Use: Highway Guardrail Steel Sheet
High Light:

red Highway Guardrail Roll Forming Machine

,

15T Highway Guardrail Roll Forming Machine

,

Cr15 metal sheet forming machine

Three Waves Highway Guardrail Roll Forming Machine 15T



1. manual uncoiler--2. hydraulic punching-- 3. roll forming machine-- 4. PLC control box--

5. hydraulic system-- 6. post cut-- 7.output table

Two waves highway guardrail roll forming machine automatic tile making machine

MACHINE LIST--WHOLE LINE
No. Item Unit Qty
1. 15T Manual decoiler set 1
2. Leveling device set 1
3. Punching system pcs 1
4. Main forming machine set 1
5. PLC Control box set 1
6. Hydraulic pump set 1
7. Cutting system pcs 1
8. Manual stacker pcs 1



Components of highway guardrail roll forming machine

5T manual decoiler









 1. Material coil inner diameter 450mm-550mm
2. Max coil Width 550mm
3. Loading capacity 15T
4. Expand and shrink Manual
5. Framework Welded by middle plate





Leveling device





 1. Leveling shafts Up 5 down 6 steps
2. Shaft diameter 80mm
3. Motor power 5.5kw







Punching system







 1. Punch mode Four pillar hydraulic powered punching system
2. Mold material Cr12
3. Work table size 600*600mm
4. Press power 160T



Main machine



















 1. Machine body frame Cast iron vertical structure
2. Machine base 350# steel welded
3. Number of forming steps 13 steps
4. Roller material Cr15 steel with heat treatment HRC45-52
5. Shaft 45#steel ,diameter 90mm
6. Bearing Chinese famous brand Harbin
7. Safety cover Available
8. Transmission style Gearbox drive
9. Main motor 22kw
10. Technological process Forging→Rough turning→Quenching→Grinding →Finish turning →Electroplating chromium →Finish

Electric control parts









 1. PLC Delta
2.

Frequency converter



 Schneider
3. Operate manual 5.7 inch touch screen
4. Counter Chint
5. Reducer Delta



Hydraulic parts







 1. Pump power 18.5kw
2. Electromagnetism valves 4
3. Hydraulic pipes 4
4. Pressure guage 1

Cutting parts





 1. Cutting mode Hydraulic tracking cut
2. Blade Cr12 Mov with heat treatment HRC58-62℃
3. Cutting length tolerance ±1mm



3m manual stacker





 1. Size 3000*1200*500mm
2. Height Adjustable
3. Running roller 4 steps



Three Waves Highway Guardrail Roll Forming Machine 15T 1



Three Waves Highway Guardrail Roll Forming Machine 15T 2

Three Waves Highway Guardrail Roll Forming Machine 15T 3

Three Waves Highway Guardrail Roll Forming Machine 15T 4

Three Waves Highway Guardrail Roll Forming Machine 15T 5

Three Waves Highway Guardrail Roll Forming Machine 15T 6

Three Waves Highway Guardrail Roll Forming Machine 15T 7

Three Waves Highway Guardrail Roll Forming Machine 15T 8
