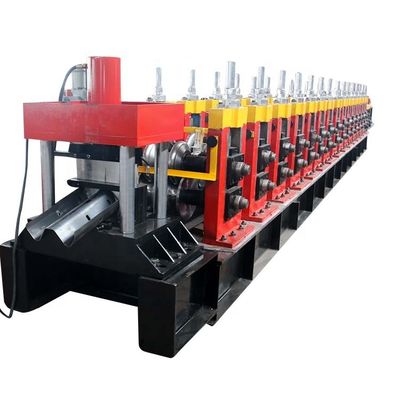

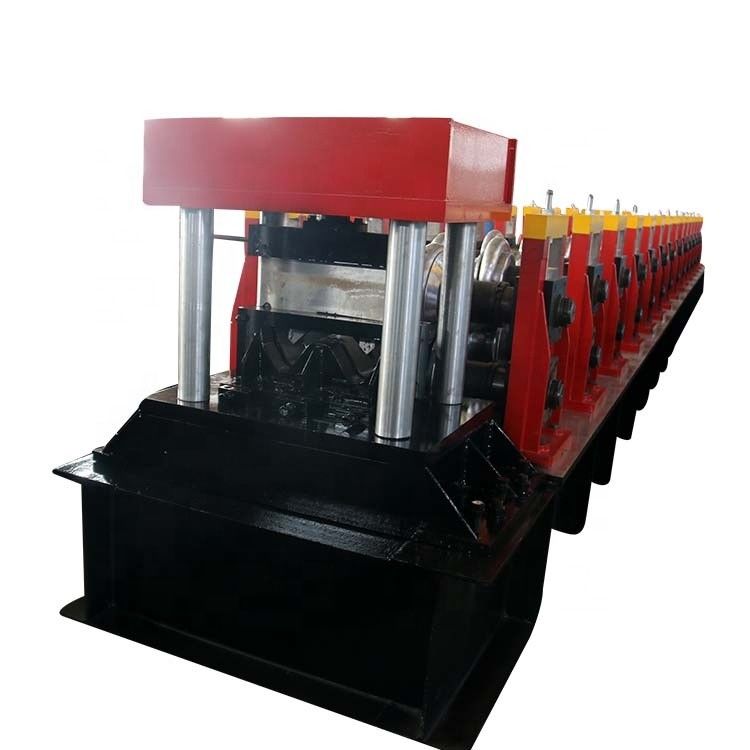

Red Crash Barrier Roll Forming Machine 15m/min 3T Manual Feeding

Red Crash Barrier Roll Forming Machine 15m/min 3T Manual Feeding

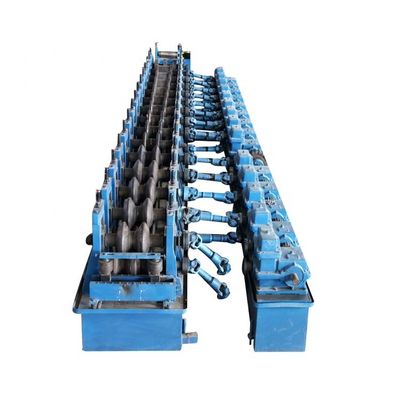

Crash barrier or Guardrail is a barrier on a road designed to prevent vehicles from leaving the roadway to improve road safety. Fully Automatic Guard Rail Roll Forming Line can produce 2 and 3 waves guardrail as customer required. Crash Barrier Roll Forming Machines have been designed for producing w shaped guardrails with 2 wave or 3 waves placed on both sides of highway or expressway.

Equipment configuration
Manual Feeding device (3 T capacity), transmission, flattening device, before-punching device (2 sets), main machine and roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc.

Raw material
Material spec	Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet	2.0-3.0mm
Machine details
Roller material	High grade no. 45 forged steel with 0.05mm hard chrome plating
Shaft material	High grade no. 45 carbon wrought steel
Cutting blade	Cr12 mould steel with quenched treatment
Diameter of shaft	90mm or as your requirement
Main frame	350 h steel
Hydraulic pressure	10-12mpa
Controlling system	Famous plc computer control
Material of cutting table	Cr 12 mould steel with quenched treatment
Hydraulic oil	40# hydraulic oil



5T hydraulic decoiler:

Steel coil width: from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Coil placement in the coil holder: hydraulic hoist;
Pulling of steel from the coil to the pulling mechanism for the start: manual;
Suitable of the pulling mechanism for all required thicknesses: included;
Device preventing unwinding of the coil from the coil holder: included;
Uncoiled metal compensator: included, assures even feeding at all production speeds;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw
