Home ProductsHighway Guardrail Roll Forming Machine

15m/min Standing Seam Roll Forming Machine Equipment 5.5KW

15m/min Standing Seam Roll Forming Machine Equipment 5.5KW

  • 15m/min Standing Seam Roll Forming Machine Equipment 5.5KW
  • 15m/min Standing Seam Roll Forming Machine Equipment 5.5KW
  • 15m/min Standing Seam Roll Forming Machine Equipment 5.5KW
15m/min Standing Seam Roll Forming Machine Equipment 5.5KW
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: Highway guardrail
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: fit for ocean shipping
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 20sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Color: Blue Use: Highway Guardrail Steel Sheet
Control: PLC Working Speed: 10 -12m/min
High Light:

15m/min Standing Seam Roll Forming Machine

,

5.5KW Standing Seam Roll Forming Machine

,

Highway Guardrail roll forming equipment

15m/min Standing Seam Roll Forming Machine Equipment 5.5KW

Production process
Manually uncoiling →Feeding & Correcting→ Seven rollers flattening device →

Flat panel Punching→ Roll forming → Cutting after roll forming → Finished product.

Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine
Raw material
Material spec Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet 2.0-3.0mm
Machine details
Roller material High grade no. 45 forged steel with 0.05mm hard chrome plating
Shaft material High grade no. 45 carbon wrought steel
Cutting blade Cr12 mould steel with quenched treatment
Diameter of shaft 90mm or as your requirement
Main frame 350 h steel
Hydraulic pressure 10-12mpa
Controlling system Famous plc computer control
Material of cutting table Cr 12 mould steel with quenched treatment
Hydraulic oil 40# hydraulic oil
After sale-services
Delivery time 50workdays after receiving the deposit
Payments 30% deposit by t/t in advance and 70% balance after inspection confirmation before shipment

5T hydraulic decoiler:
Steel coil width: from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Coil placement in the coil holder: hydraulic hoist;
Pulling of steel from the coil to the pulling mechanism for the start: manual;
Suitable of the pulling mechanism for all required thicknesses: included;
Device preventing unwinding of the coil from the coil holder: included;
Uncoiled metal compensator: included, assures even feeding at all production speeds;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw

Flattener:
The quantity of leveler rolls must be planned according to thickness 2.0mm to 3.0 mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:¢70mm, material is SAE 1045, hardening and tempering

Punching:
Adopt Hydraulic punching
Diameter of cylinder¢140mm
Working pressure: 20mpa
The punches and dollies will be CR-12, hardness HRC 58-62
Hydraulic power :11KW
Dimensions: 1.5m* 1.1m* 1.2m

Forming section:
Main motor power : 55 kw
Cycloidal pin wheel reducer : BWD14-43-55KW,
Place of Origin:Shanghai or Cangzhou
Transmission:Gear box 170#
Shaft diameter: ¢110 mm material: SAE1045 with quenching and tempering
Roller material:ASTM1045 chrome plated surface with chrome
Forming station: about 16 stations (according the final design)
Machine roll forming speed :0m-15m/min(without punching)
Machine Voltage, Frequency:Japan Yaskawa(380 V, 50 Hz, 3Phase)

Cutting :
Shearing by hydraulic station
Material of blade:Cr12, 58-62 HRC hardness
Diameter of cylinder¢200mm
Working pressure:30mpa
Working range :80mm

Out table:
Jointed by 60mm*40mm tube (adjustable)
One out table with two support roller
Size: 1.0m long*0.8mwide*0.6-1mhigh (adjustable)



Hydraulic station:
Hydraulic power: 18.5kW
Working pressure: 20-25Mpa adjustable
Solenoid valve: 3 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

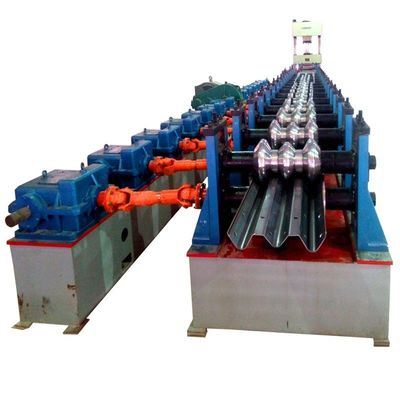

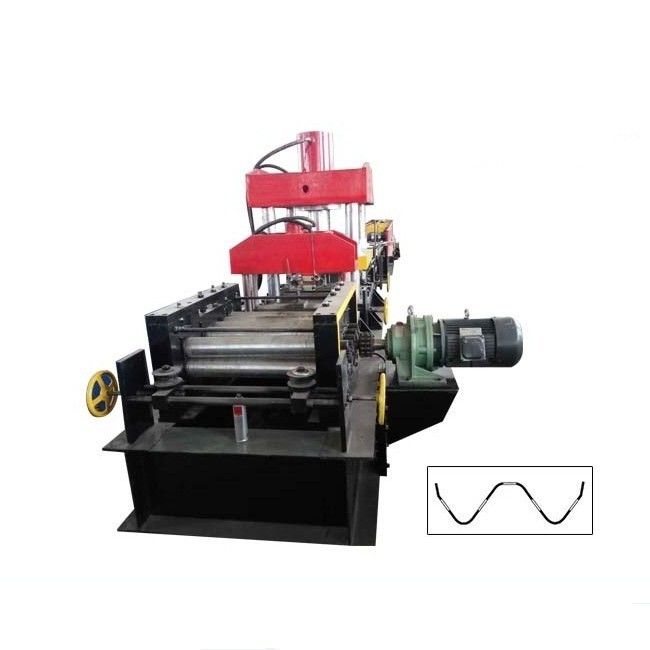

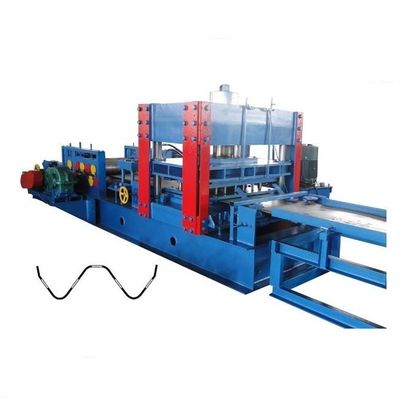

Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine


Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine

Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine

Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine



Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine
Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine

Two Purlin Waves Highway Guardrails Panel Machine/Highway Rolling Former Forming Machine
