Warranty:	1 Year	Voltage:	380V 50Hz 3phases
Condition:	New	Control System:	Totally Automatic PLC Taiwan Delta Or Siemens Control System .
Working Speed:	10 -12m/min	Oem:	YES
High Light:	12m/min Panel Roll Forming Machine , Guardrail Panel Roll Forming Machine , CE metal roll forming machine

Model number	Highway guardrail automatic forming machine
Rolled material	2-4mm thickness, General Steel such as Q235
Effective width	350mm
Feeding width	488mm
Forming steps	16 stations
Roller	GCR15, quenched treated HRC58-62°C
Diameter of shaft	100mm
Main motor power	37 kw
Pump power	15 kw
Drive type	by chains Or by Gear box(worm driving)
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table

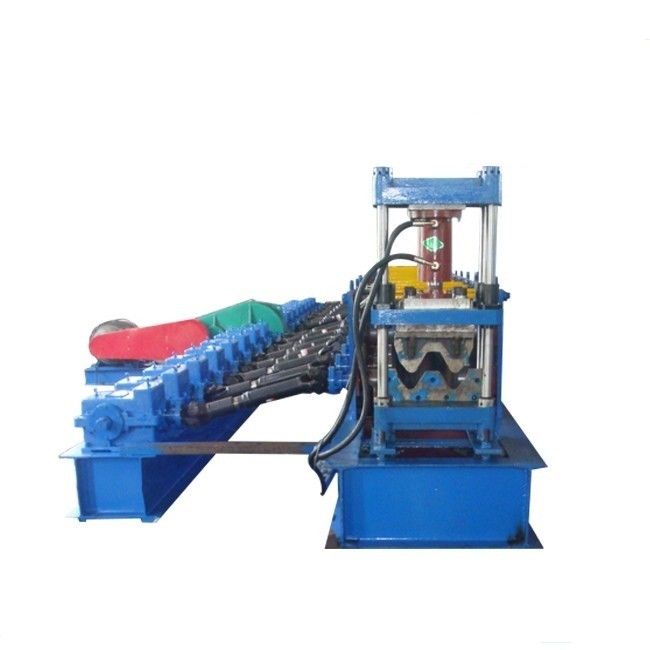

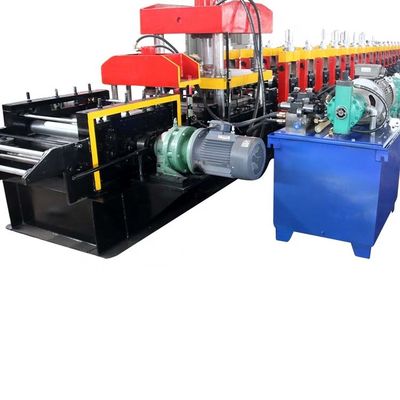

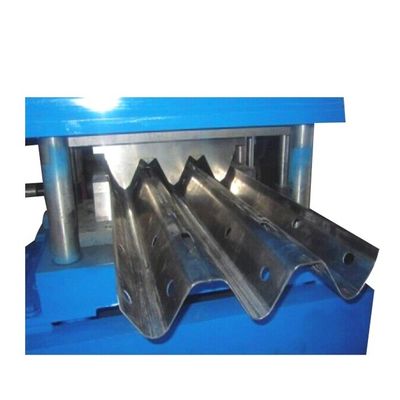

Metal Panel Roll Forming Machine For Guard Rail 12m/min

12m/min Panel Roll Forming Machine
