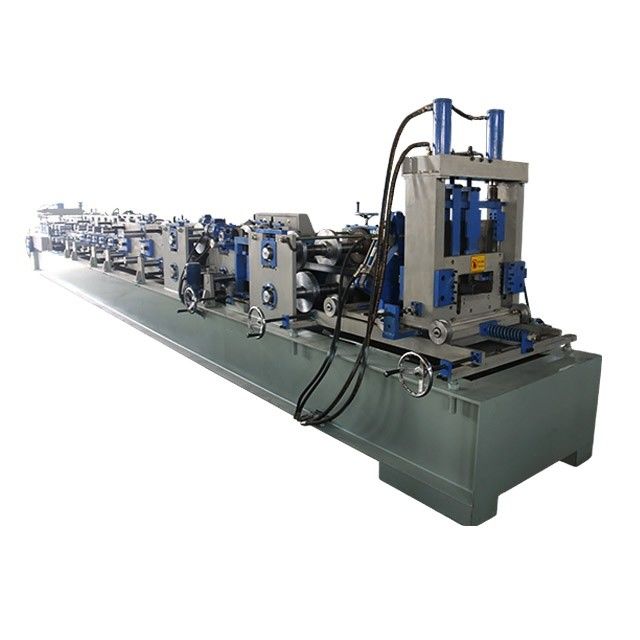

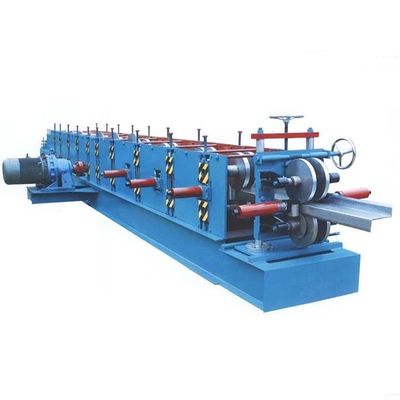

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

  • 15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
  • 15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
  • 15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: C/Z
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: as request
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C
Supply Ability: 50sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V/50HZ 3Phase Weight: 6.5T
Condition: New Tile Type: Steel,galvanized Plate
Warranty: 1 Year Production Capacity: 15m/min
High Light:

15m/min CZ Purlin Roll Forming Machine

,

Gray CZ Purlin Roll Forming Machine

,

6.5T steel sheet making machine

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching machine---cutting---product to stand



2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.



3. Technical parameters

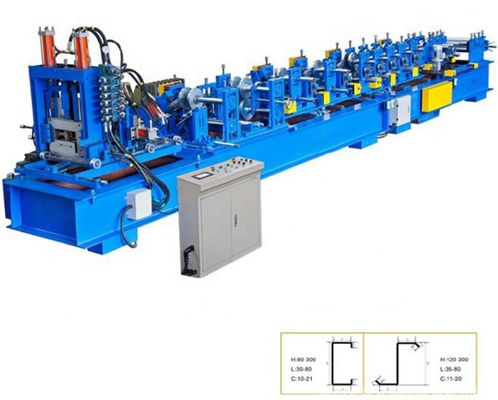

1) Profile

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station 0

2) inner tight decoiler

Coil inner diameter 450mm--700mm
Max width of coiling 1250mm
Max weight of loading 5000kg

3) main forming machine

Shaft material 45# steel,bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 8--15m/min
Voltage 380v,50hz
Roller station 15

FX galvanized drywall tracks manufacturing equipmentFX galvanized drywall tracks manufacturing equipment

4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming



5) control system

A. PLC: taida form Taiwan

B. Coder:from south korea

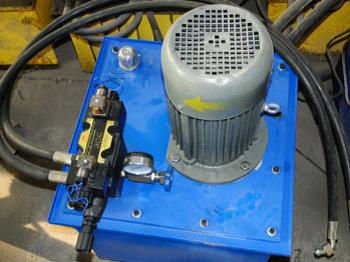

6) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station 3



Tag:

Hydraulic CZ Purlin Roll Forming Machine,

5T CZ Purlin Roll Forming Machine,

ISO cold formed steel machine
