12m/min Color Steel Roll Forming Machine Cut to Length Line

12m/min Color Steel Roll Forming Machine Cut to Length Line

  • 12m/min Color Steel Roll Forming Machine Cut to Length Line
  • 12m/min Color Steel Roll Forming Machine Cut to Length Line
  • 12m/min Color Steel Roll Forming Machine Cut to Length Line
12m/min Color Steel Roll Forming Machine Cut to Length Line
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Cutting machine
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: fit for ocean shipping
Delivery Time: 30-60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380/220V Feeding Width: As Request
Warranty: One Year Capacity: 10-12m/min
Tile Type: Steel Cutting Type: Hydraulic Cutting
High Light:

220V Color Steel Roll Forming Machine

,

12m/min Color Steel Roll Forming Machine

,

Hydraulic steel stud roll forming machine

12m/min Color Steel Roll Forming Machine Cut to Length Line

Main Features

This Cut to Length Line is suitable for decoiling, leveling & cutting steel coils into required length.

The production line has the feature of high precision, topping stabilization, and excellent performance.

Using PLC system to control the whole line’s work, the operation is convenient and easy.
The machine adopts PLC VF controlling system, DC driving for the leveling, Touch screen operating

and digital display. The production line is widely used for steel coil servcing for cold rolled steel,

hot rolled steel, galvanized steel, stainless steel, etc.



1.Material

1) Width :2000mm

2) Thickness:0.3-3.0mm
2.Including equipment

1) 5T Hydraulic decoiler :1 set

2) Flatten and cutting machine :1 set

3) Auto conveyor table:1 set

4) Simple stand :1 set
3.Process 5T hydraulic decoiler -flatten and cutting machine-auto conveyor table
4.5hydraulic decoiler

1)Inner diameter :450-550mm

2)Out diameter 1200mm

3)Width 2000mm

4)Weight :5T

5)Motor :5.5kw
5 Flatten and cutting

1) Stations:Up6 bottom 7, diameter :90mm

2) Stations: Up 3 bottom 5,diameter:80mm

3) Material :40Cr

4) Motor:7.5KW

5) Speed:15-20m/min
6Auto conveyor table 1 set

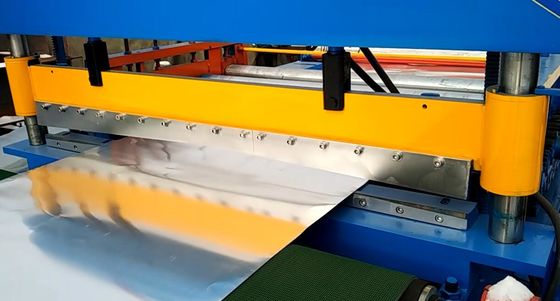

12m/min Color Steel Roll Forming Machine Cut to Length Line 0

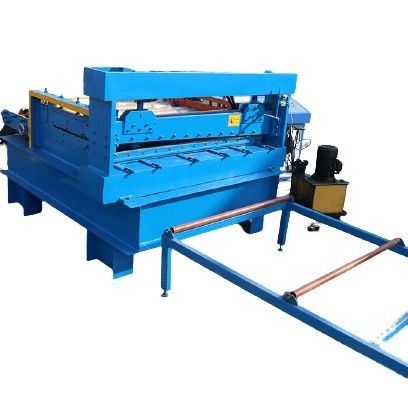

12m/min Color Steel Roll Forming Machine Cut to Length Line 1

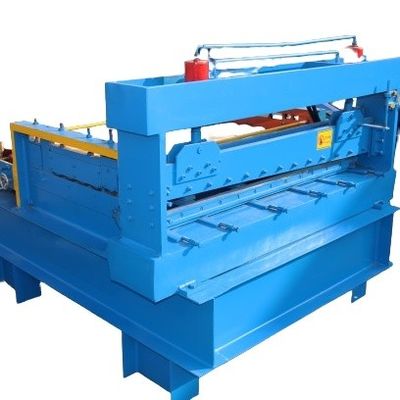

12m/min Color Steel Roll Forming Machine Cut to Length Line 2

Tag:

7.5KW Color Steel Roll Forming Machine,

blue metal roofing roll former,

1200mm Color Steel Roll Forming Machine
