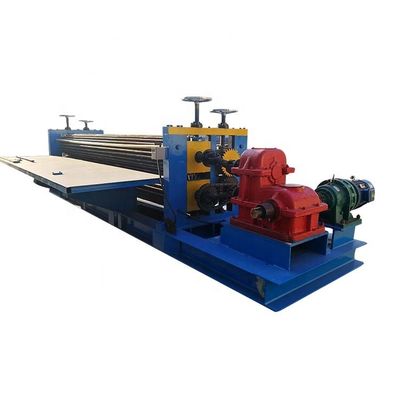

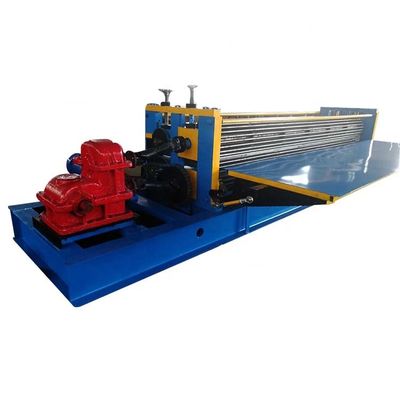

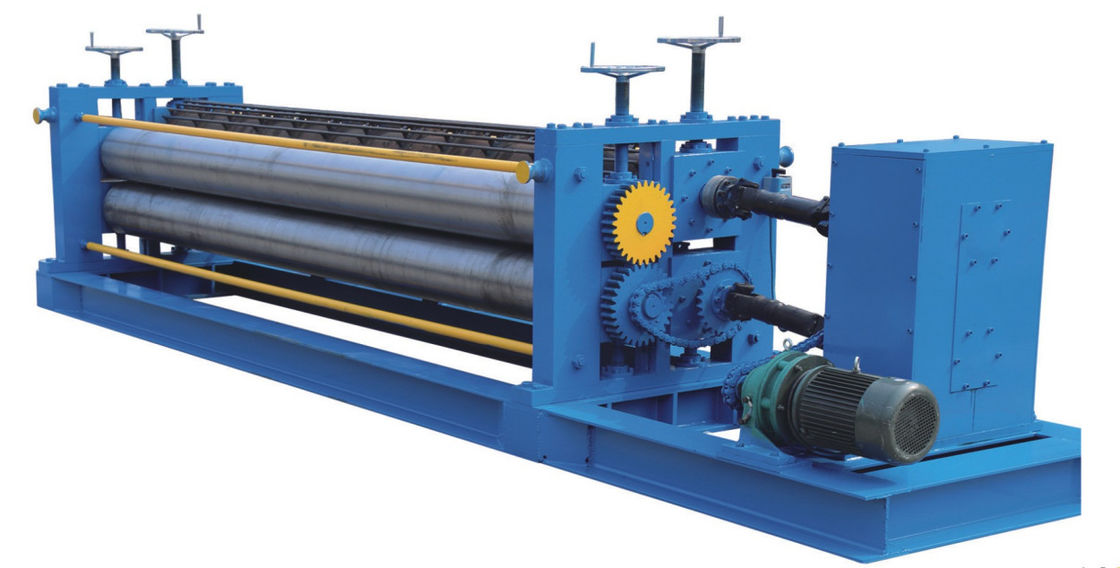

0.2mm Barrel Type Corrugated Sheet Roll Forming Machine With 300mm Shaft

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Wood case
Delivery Time:	15-20 working days
Payment Terms:	T/T, L/C
Supply Ability:	300sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V 50Hz 3phases	Condition:	New
Tile Type:	Colored Steel	Warranty:	1 Year
Thickness:	0.15-0.2mm	Roller Length:	2.5m/3m/4m/6m
High Light:	0.2mm Corrugated Sheet Roll Forming Machine , 300mm Shaft Roll Forming Machine , 4kw Sheet Roll Forming Machine

Barrel Corrugated Roofing Sheet Making Machine:

the tiles produced by this Barrel Corrugated Roofing Sheet Making Machine are widely used in

all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance,

high efficiency and reliable working.It consists of feeding platform, main molding core, shearing

mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

Barrel Corrugated Roofing Sheet Making Machine Usage:Put the raw material(steel plate) through

the beach to manufacture and process,

It can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

Parameters

machine	Forming steps	4 piece roller
	Shaft diameter	300mm
	Machine stand	Individual Arch Plate
	Machine frame	steel plate welded
	roller material	45#steel
	shaft material	45# steel with quenching and tempering
	Work speed	15-30 pieces/min
	Transport	By chains
	Power of main machine	4kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	6.51.51.2m
	Machine weight	About 4.5T
	Machine color	Yellow and blue(as required)
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime.
