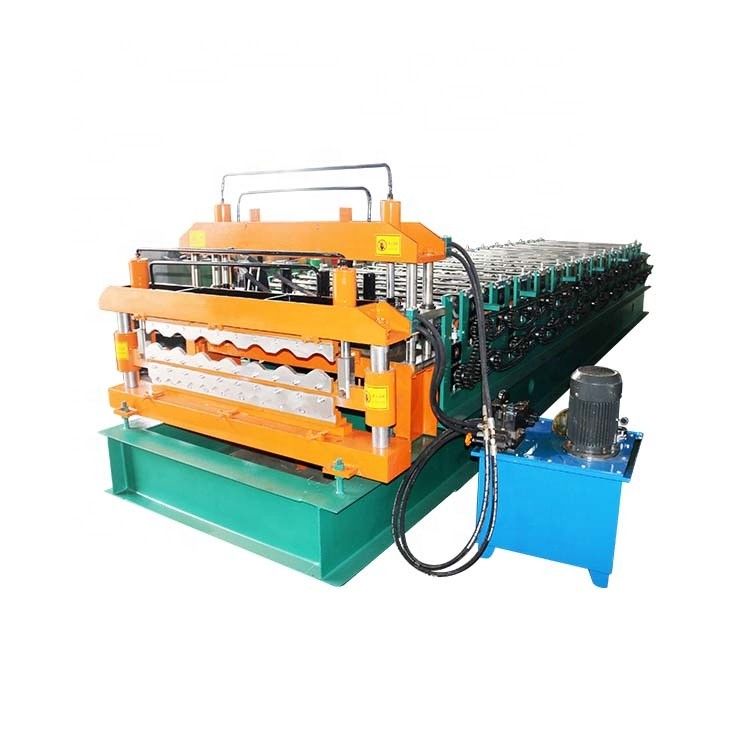

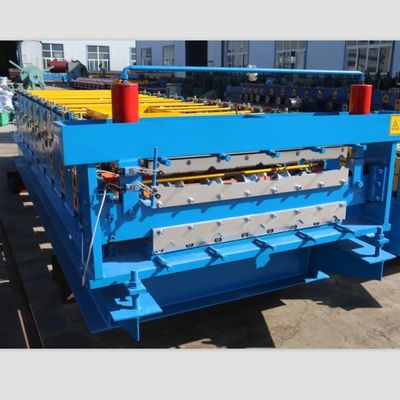

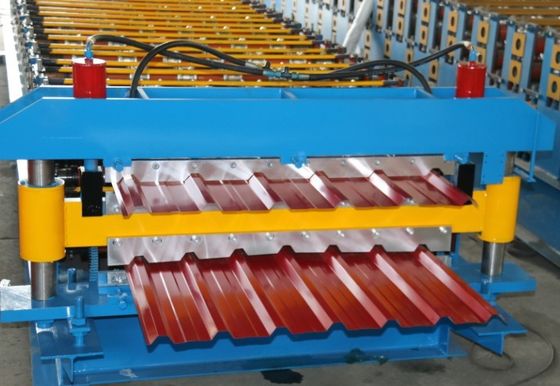

Cold Steel Frame Roll Forming Machine 10m/min Double Layer

Cold Steel Frame Roll Forming Machine 10m/min Double Layer

Cold Steel Frame Roll Forming Machine 10m/min Double Layer
video
Cold Steel Frame Roll Forming Machine 10m/min Double Layer
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 15sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50/60Hz 3phases Tile Type: Colored Steel
Condition: New Warranty: One Year
Cutting Blade Material: Cr12Mov With Quenched Treatment After-sales Service Provided: Online Support
Highlight:

380V Steel Frame Roll Forming Machine

,

10m/min Steel Frame Roll Forming Machine

,

hydraulic metal sheet making machine

Cold Steel Frame Roll Forming Machine 10m/min Double Layer

inner tight decoiler



Coil inner diameter 450-550mm
Max width of coiling 1250mm
Max weight of loading 5000kg

828-850 full automatic double layer metal roofing cold steel roll forming machine factory price for sale

main forming machine

Shaft material 45# steel,bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 8-10m/min
Voltage 380V,50Hz
Roller station 15

828-850 full automatic double layer metal roofing cold steel roll forming machine factory price for sale





4) cutting system

A. hydraulic cutter

B. Blade and mould material: Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.no



5) control system

A. PLC: taida form Taiwan

B. Coder: from south korea

828-850 full automatic double layer metal roofing cold steel roll forming machine factory price for sale



6) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

828-850 full automatic double layer metal roofing cold steel roll forming machine factory price for sale

4. Spare Parts

1). Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2). Rubber mat 1 pcs;

3). Bolt spanner 1 pcs

Tag:

7.5KW Color Steel Roll Forming Machine,

blue metal roofing roll former,

1200mm Color Steel Roll Forming Machine
