15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet

15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet

  • 15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet
  • 15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet
  • 15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet
15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Rood tile
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: as customer's request
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 150sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Use: Roof,Wall,metal Stud
Condition: New Tile Type: Colored Steel
Control System: PLC Warranty: 1 Year
High Light:

red Color Steel Roll Forming Machine

,

15m/min Color Steel Roll Forming Machine

,

CE roof tile roll forming machine

15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet



NO. Item Parameter
1 material color steel/galvanized steel/aluminium(if G550 please check with us)
2 feeding width as customers' request
3 material thinkness 0.3-0.8mm or as customers' request
4 machine size 6.8*1.5*1.9
5 machine weight 5.5T
6 voltage requirement 380V60Hz3P
7 working speed 10-15m/min
8 machine base 350# steel welded
9 Frame Steel plate screwed
10 forming steps 11steps
11 rollers 45# steel with quenching HRC 40-45℃
12 shaft 45#steel,diameter 80mm
13 transmission 1inch chain or gear
14 PLC Delta
15 motor 4kw
16 pump 4kw
17 cutter Cr12 HRC 58-62℃
18 after-sale service 24h*7days*1year’s on line and engineer service overseas
19 warranty 1year



double heads manual decoiler

12 Month Warranty Good Quality Corrugated Tile Roll Forming machine

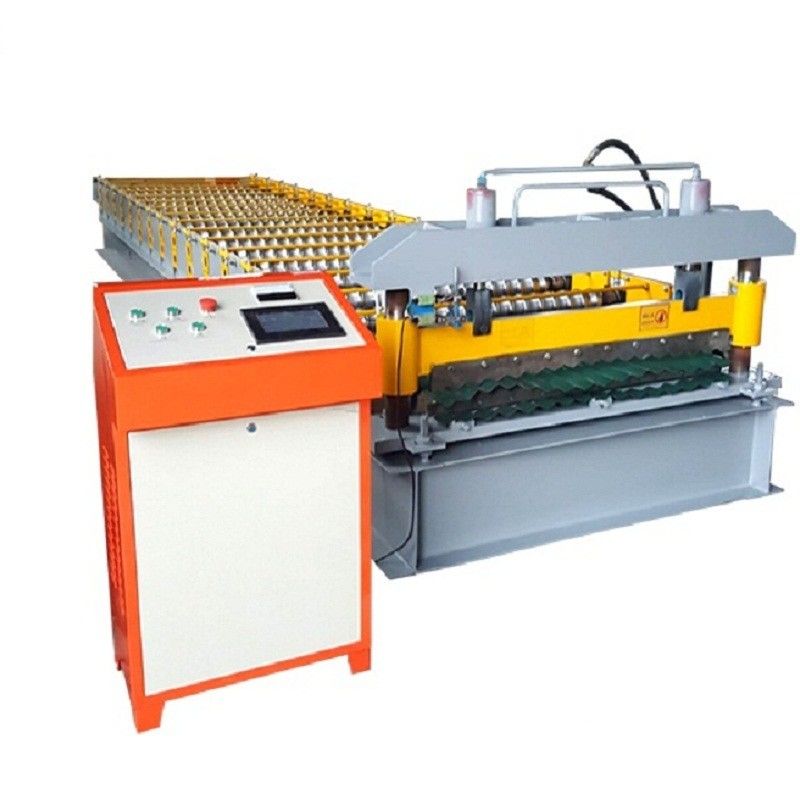

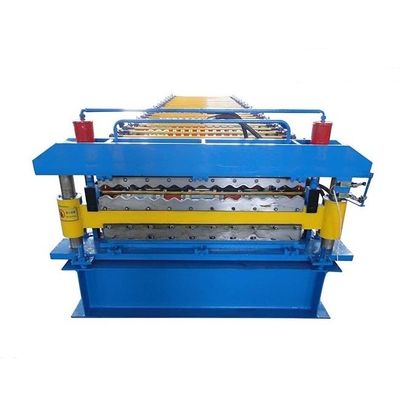

main roll forming machine
12 Month Warranty Good Quality Corrugated Tile Roll Forming machine
cutting equipment
12 Month Warranty Good Quality Corrugated Tile Roll Forming machine

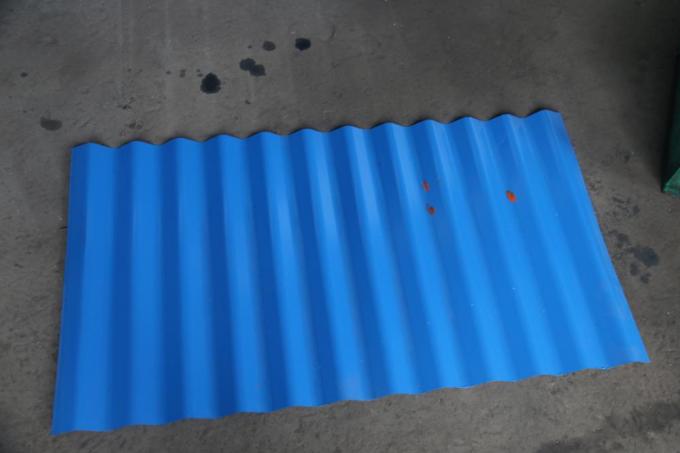

finished products of corrugated roll forming machine
12 Month Warranty Good Quality Corrugated Tile Roll Forming machine
feeding and flattening
15m/min Color Steel Roll Forming Machine Corrugated Roof Sheet 4
