Large Long K Span Roll Forming Machine Vertical Decoiler 14 Steps

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	ZX-914,ZX-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for ocean shipping
Delivery Time:	20-60 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	45sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Decoiler:	Vertical Decoiler	Condition:	New
Warranty:	1 Year	Use:	Roof
Control System:	PLC	PLC Type:	Siemens
Material Of Roller Shafts:	45#steel	Step Of Rollers:	14 Steps
High Light:	K Span Roll Forming Machine , span roof forming machine , 14 Steps span roof forming machine

LARGE LONG K SPAN ROLL FORMING MACHINE

Product intruduction:

The model is our another large span roof forming machine, it adpots PLC controlling system,

all the rollers are forged from the high quality structural steel and are processed intensely.

The surfaces of the rollers are plated with hard chromium. The rollers have a high hardness

and long operating life.

Technical parameters:

MAIN TYPE	FEEDING WIDTH	EFFECTIVE WIDTH	DEPTH OF THE GROOVE	THICKNESS	PROPER SPAN	USAGE RATE

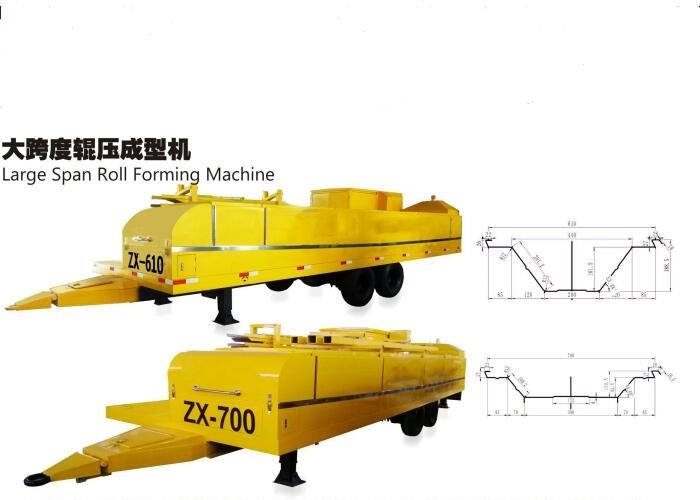

ZX-914-610	914mm	610mm	203mm	0.6-1.6mm	7m-38m	66.7%
ZX-914-650	914mm	650mm	181mm	0.6-1.6mm	7m-28m	71.1%
ZX-914-700	914mm	700mm	123mm	0.6-1.6mm	7m-24m	76.6%
ZX-914-750	914mm	750mm	86mm	0.6-1.6mm	7m-18m	82%
ZX-1000-610	1000mm	610mm	243mm	0.6-1.6mm	10m-38m	51%
ZX-1000-700	1000mm	700mm	175mm	0.6-1.6mm	7m-28m	70%
ZX-1000-750	1000mm	750mm	138mm	0.6-1.6mm	7m-20m	75%

MAIN TYPE	FEEDING WIDTH	EFFECTIVE WIDTH	DEPTH OF THE GROOVE	THICKNESS	PROPER SPAN	USAGE RATE

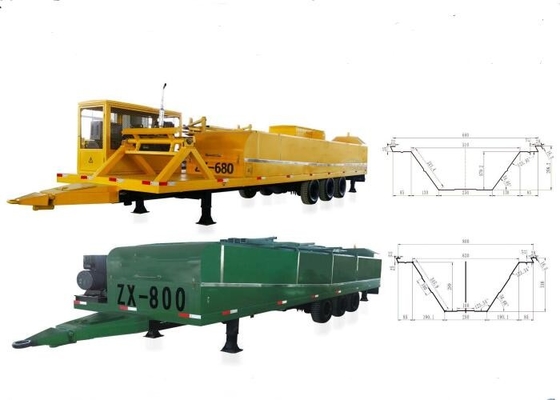

ZX-1000-680	1000mm	680mm	223mm	0.6-1.6mm	10m-36m	68.0%

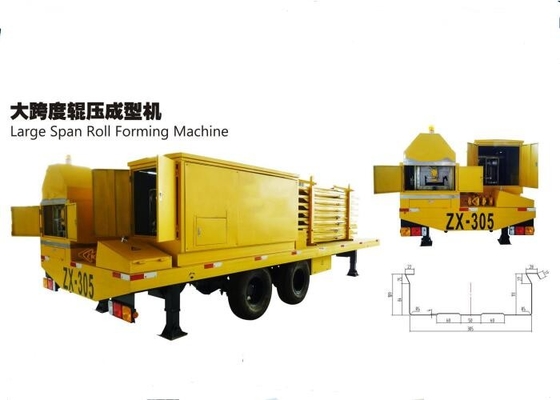

ZX-600-305	600mm	305mm	109mm	0.6-1.6mm	4m-26m	51.0%
ZX-600-303	600mm	303mm	109mm	0.6-1.6mm	4m-24m	50.5%
ZX-1250-800	1250mm	800mm	320mm	0.6-1.6mm	15m-42m	64%
ZX-1220-800	1220mm	800mm	314mm	0.6-1.6mm	15m-42m	65.5%
ZX-1200-800	1200mm	800mm	285mm	0.6-1.6mm	15m-42m	67%
ZX-1000-800	1000mm	800mm	114mm	0.6-1.6mm	6m-14m	80%
