Roof Color Steel Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	steel roll forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	20-30work days
Payment Terms:	T/T, L/C
Supply Ability:	20sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380v50/60hz	Use:	Roof,Wall
Condition:	New	Tile Type:	Colored Steel
After-sales Service Provided:	Online Support	Control System:	Totally Automatic
Warranty:	1 Year	Color:	As Customer Requirement
Highlight:	CE Color Steel Roll Forming Machine , 3kw Color Steel Roll Forming Machine , blue metal roofing roll former

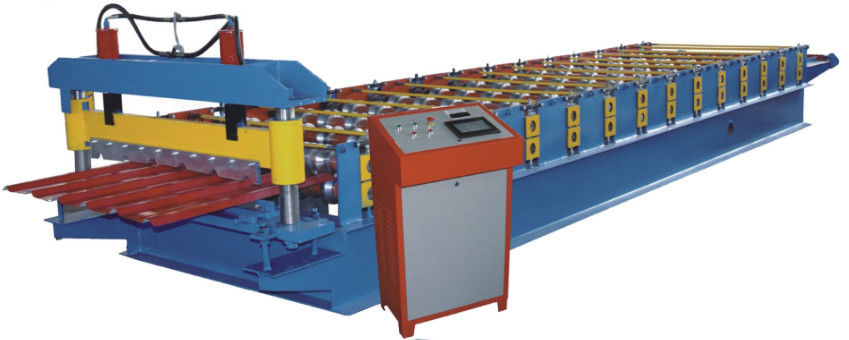

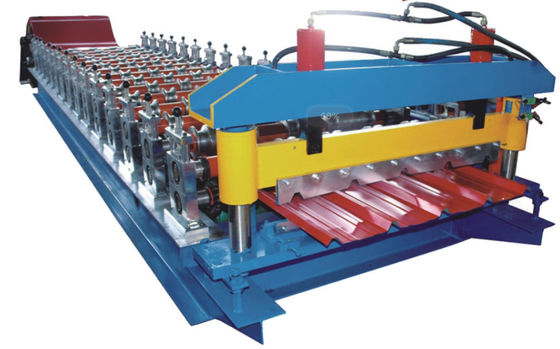

Roof Color Steel Roll Forming Machine

Technical parameters:

NO.	ITEM	PARAMETER
1	Material	type	GI,PPGI
		Width	1000mm
		thickness	0.3-0.6mm
		Yield stress	240-350Mpa

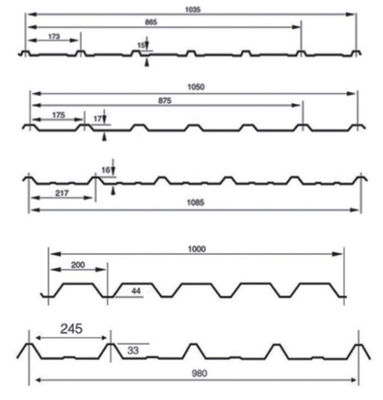

2	Product	Cover width	840±2mm
		Wave height	23±1mm
		Pitch width	210±1mm
3	Decolier	Type	Automatic with coil car
		Suitable coil OD/ID	1200/508mm
		Max coil width	1250mm
		Max capacity	10T
4	Main machine	Roller	70mm
		Roller	45#steel chrome plated
		Main machine structure	Guide column or wallboard
5	Power requirement	Main motor	3kw
5	Power requirement	Hydraulic pump	4kw
