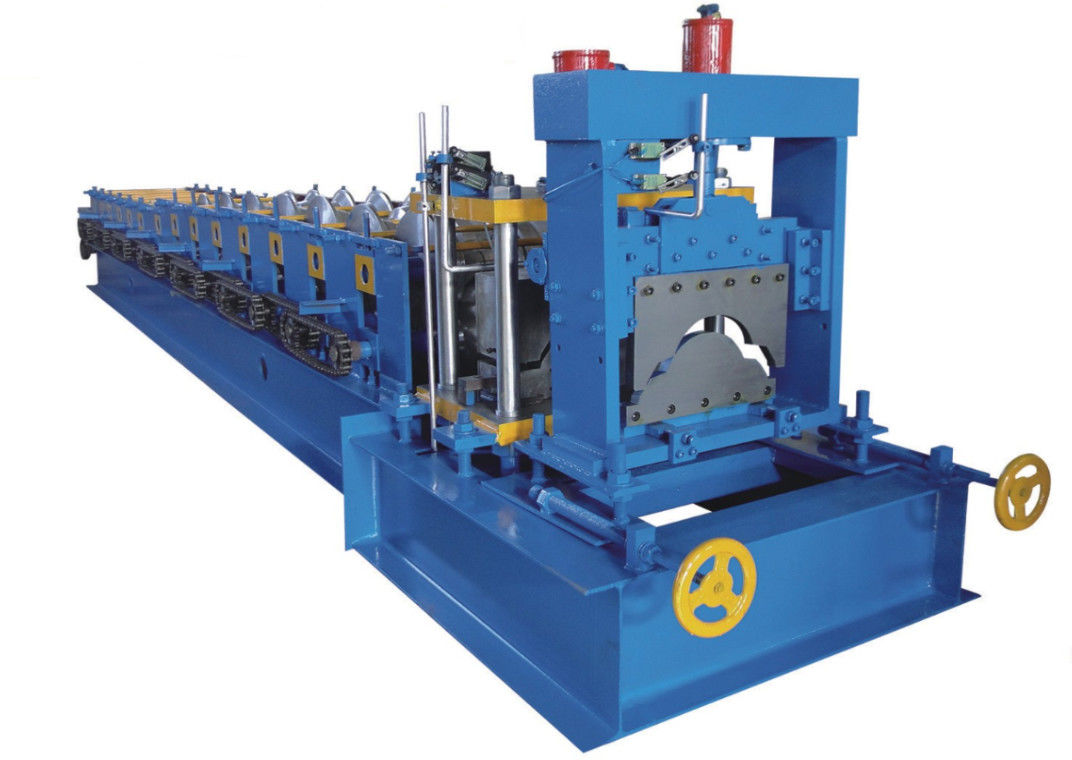

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting

  • CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting
  • CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting
  • CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting
  • CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting
CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Ridge cap forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: As your request
Delivery Time: 20-40work days
Payment Terms: T/T, L/C
Supply Ability: 15sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Condition: New Tile Type: Colored Steel
Use: Produce Ridge Cap Tile Certification: CE,ISO
Warranty: 1 Year Voltage: 380V 50Hz 3Phases Or As Request
Raw Material: Steel Cutting: Hydraulic Cutting
High Light:

hydraulic Ridge Cap Roll Forming Machine

,

Cr12 Ridge Cap Roll Forming Machine

,

CE profile sheet making machine

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting

The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching machine---

cutting---product to stand

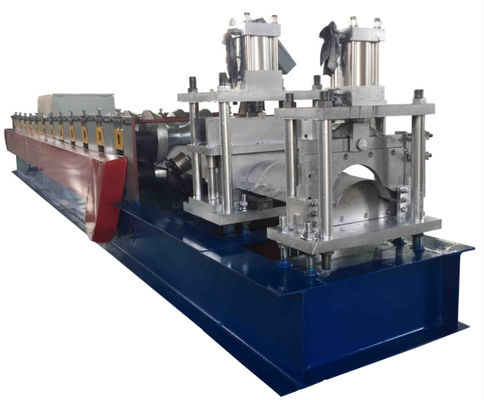

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting 0



CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting



Technical parameters:

Model number ridge cap roll forming machine
Rolled material 0.3-0.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width 1100mm
Feeding width 1250mm
Forming steps 11 stations
Roller 45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft 60mm
Main motor power 4 kw
Pump power 3 kw
Sprocket chain 1 inch
Drive type by chain
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table



Inner tight decoiler:

A. coil inner diameter: 450mm--550mm

B. max width of coiling: 1250mm

C. max weight of loading: 5000kg

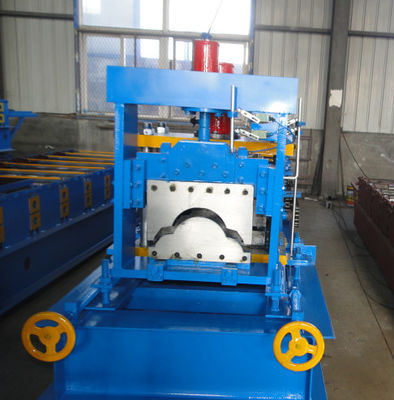

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting 1



Main roll machine:

A. Shaft material: 45# steel,bearing steel outer diameter 85mm

B. Main motor power: 5.5kw

C. Forming speed: 8--10m/min

D. Voltage: 380v,50hz

E. Roller station:15 rows

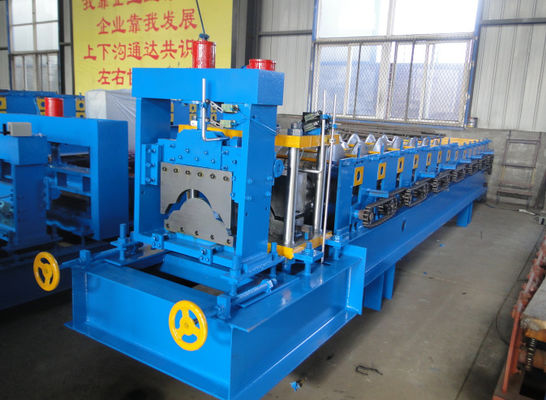

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting 2

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting 3



Step-formed mechanism: (hydraulic)

CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting 4CE Ridge Cap Roll Forming Machine Cr12 Hydraulic Cutting 5
