CE C Purlin Making Machine 20m/min GCr15 Chrome Plated

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	C/Z

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	as customer's request
Delivery Time:	30-50 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	25sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Condition:	New	Type:	Steel Frame & Purlin Machine,c Plus Z Design Cz Purlin Roll Form Machine
Voltage:	380V/50HZ 3Phase	Production Capacity:	10-20m/min
Use:	C&Z	Warranty:	1 Year
After-sales Service Provided:	Online Support,Video Technical Support	Control System:	PLC Touch/button Screen
High Light:	CE C Purlin Making Machine , Hydraulic C Purlin Making Machine , 20m/min steel stud making machine

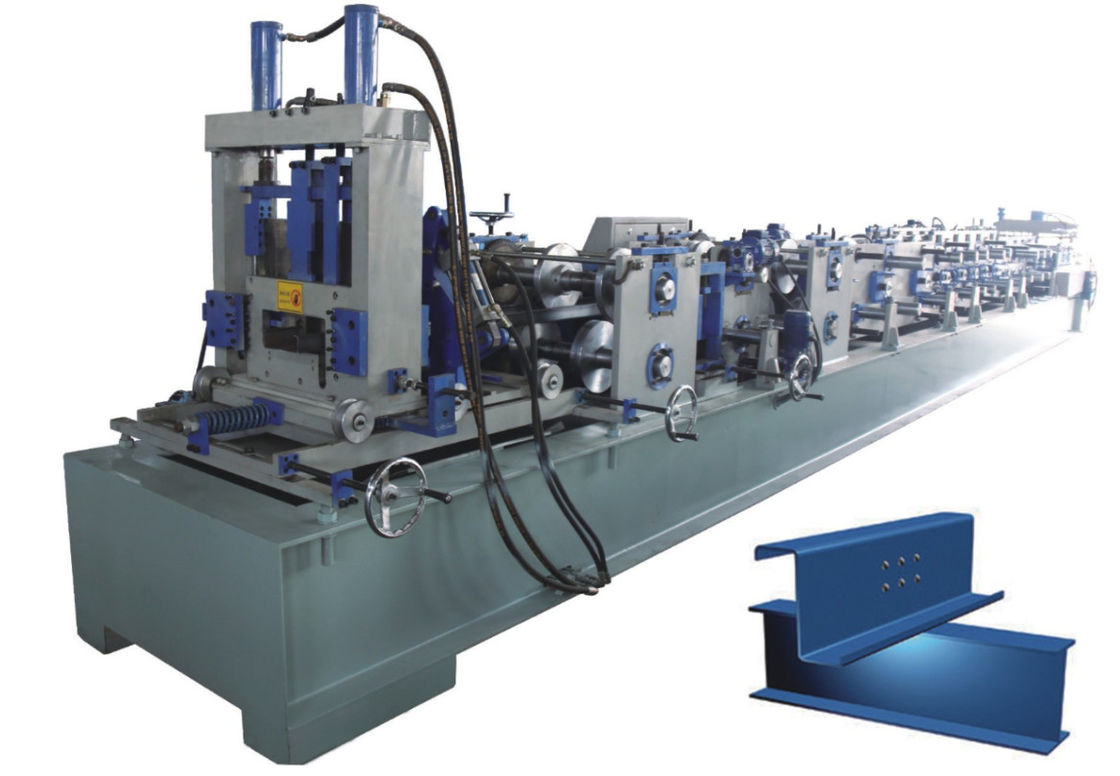

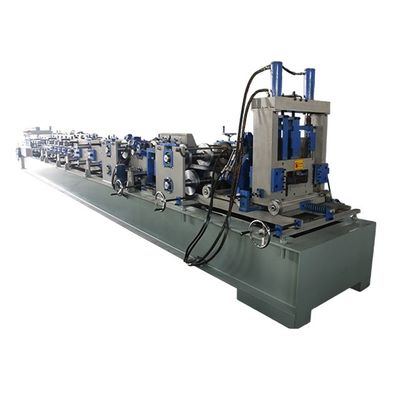

CE C Purlin Making Machine 20m/min GCr15 Chrome Plated

Features:

1. Light weight,environmenttal protection and economical

2. Durability and life-long used with high efficiency

3. Easy installed and operate

4. Nice appearance and fashion style

Technical parameters :

NO.	ITEM	PARAMETER
1	Material	type	GI,PPGI
		Width	190-420mm
		thickness	0.5-3mm
		Yield stress	350-550Mpa
2	Product	Cover width	80-300mm
		Wave height	80-300mm
		Pitch width	40-80mm
3	Decolier	Type	Automatic with coil car
		Suitable coil OD/ID	1200/250-508mm
		Max coil width	1000mm
		Max capacity	15T
4	Levelling parts	roller	Diameter:90mm
		roller	No.45 steel with quenching
		Forming stand	18
5	Punching parts	Type	Hydraulic punching
5	Punching parts	Model material	GCr12
6	Main machine	Roller	90mm
		Roller	GCr15 chrome plated
		Main machine structure	Guide column or wallboard
7	Power requirement	Main motor	11.5kw

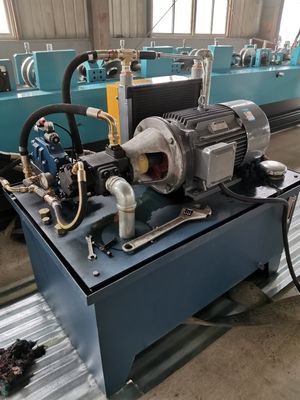

7	Power requirement	Hydraulic pump	5.5kw
