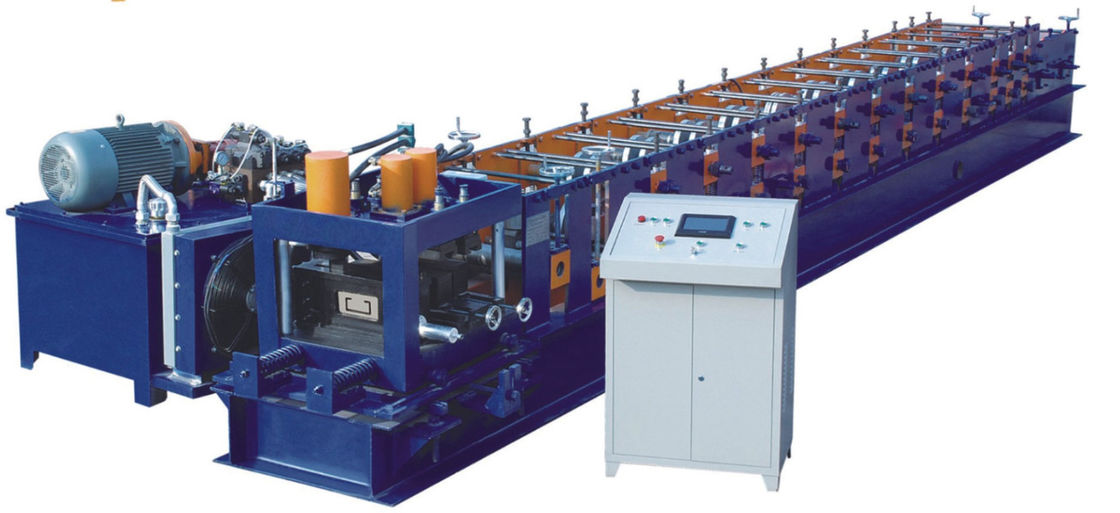

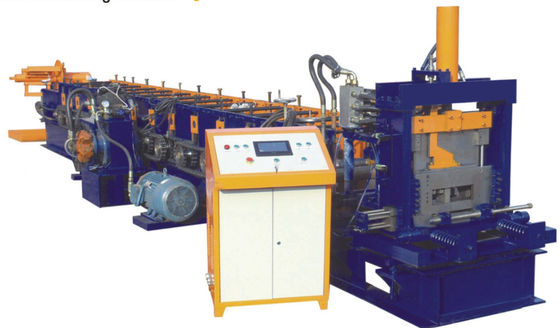

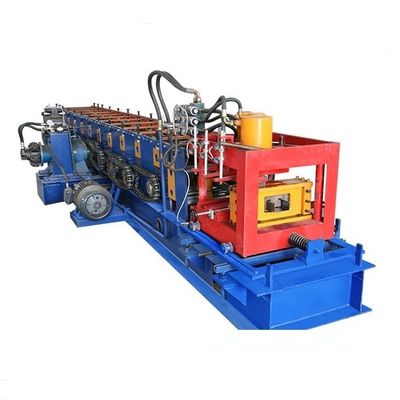

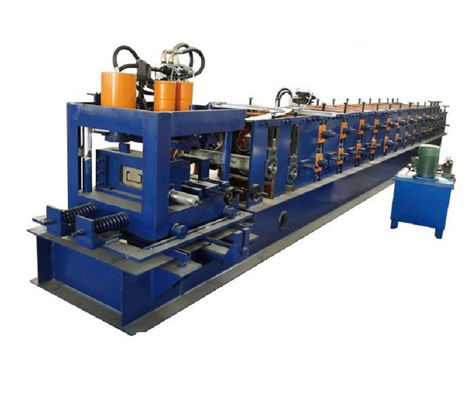

Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler

Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler

Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler
video
Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: C/Z
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 30-50 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V/50HZ 3Phase Weight: 6.5T
Condition: New Type: C Plus Z Design Cz Purlin Roll Form Machine
Warranty: 1 Year After-sales Service Provided: Online Support,Video Technical Support
High Light:

Hydraulic CZ Purlin Roll Forming Machine

,

5T CZ Purlin Roll Forming Machine

,

ISO cold formed steel machine

Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler



NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 190-420mm
thickness 0.5-3mm
Yield stress 350-550Mpa
2 Product Cover width 80-300mm
Wave height 80-300mm
Pitch width 40-80mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/250-508mm
Max coil width 1000mm
Max capacity 5T
4 Levelling parts roller Diameter:95mm
No.45 steel with quenching
Forming stand 18
5 Punching parts Type Hydraulic punching
Model material GCr12
6 Main machine Roller 90mm
GCr15 chrome plated
Main machine structure Guide column or wallboard
7 Power requirement Main motor 11.5kw
Hydraulic pump 5kw



Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler 0

Double Heads Decoiler

Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler 1
