7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching

7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching

7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching
video
7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: C purlin
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: as request
Delivery Time: 25-50 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Type: Steel Frame & Purlin Machine Voltage: 380V/50HZ 3Phase(as Customer's Request)
Weight: 4.2 T Condition: New
Tile Type: Steel,galvanized Plate Warranty: One Year
After-sales Service Provided: Video Technical Support
High Light:

ISO C Purlin Roll Forming Machine

,

7.5KW C Purlin Roll Forming Machine

,

C Channel Roll Forming Machine

C Purlin Roll Forming Machine

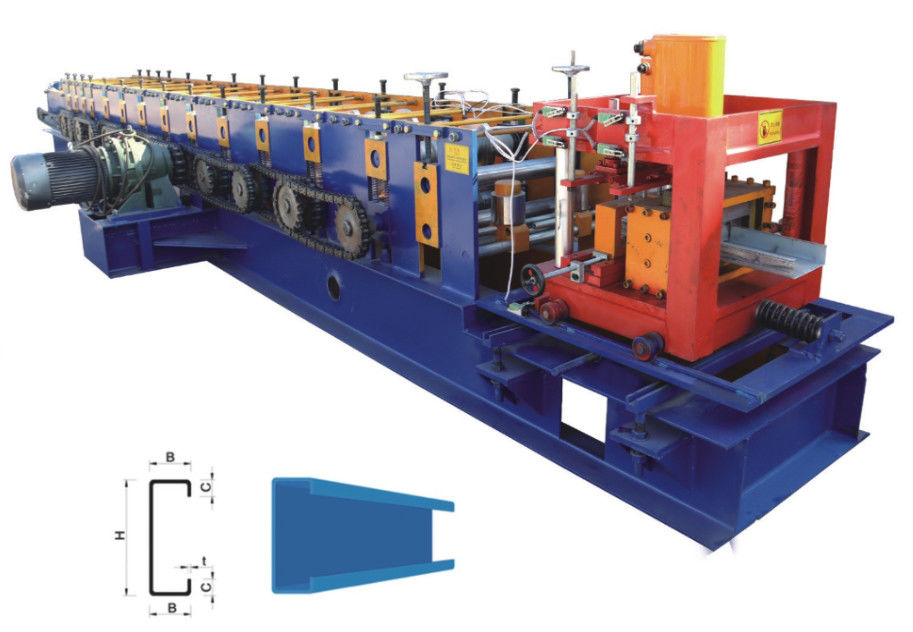

C purlin dimension table

C Purlin
Model Section Size(mm) Holes Distance
h b c t mm
C80 80 40 15 2.0-3.0 40
C100 100 50 20 2.0-3.0 Adjustable
C120 120 50 20 2.0-3.0 Adjustable
C140 140 50 20 2.0-3.0 Adjustable
C160 160 60 20 2.0-3.0 Adjustable
C180 180 60 20 2.0-3.0 Adjustable
C200 200 60 20 2.0-3.0 Adjustable
C220 220 70 20 2.0-3.0 Adjustable
C250 250 70 20 2.0-3.0 Adjustable
C300 300 80 20 2.0-3.0 Adjustable

Different sizes are available according to customers' request

Technical parameters:



NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 190-420mm
thickness 0.5-3mm
Yield stress 350-550Mpa
2 Product Cover width 80-300mm
Wave height 80-300mm
Pitch width 40-80mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/250-508mm
Max coil width 1000mm
Max capacity 5T
4 Levelling parts roller Diameter:90mm
No.45 steel with quenching
Forming stand 15
5 Punching parts Type Hydraulic punching
Model material GCr12
6 Main machine Roller 90mm
GCr15 chrome plated
Main machine structure Guide column or wallboard
7 Power requirement Main motor 7.5kw
Hydraulic pump 4kw

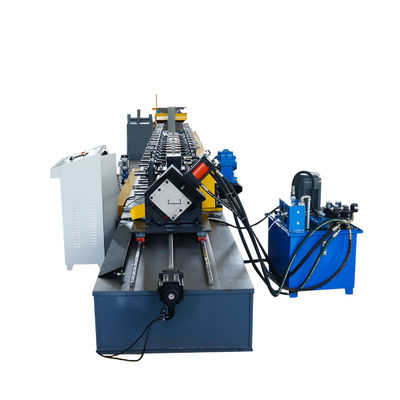

7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching 07.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching 1

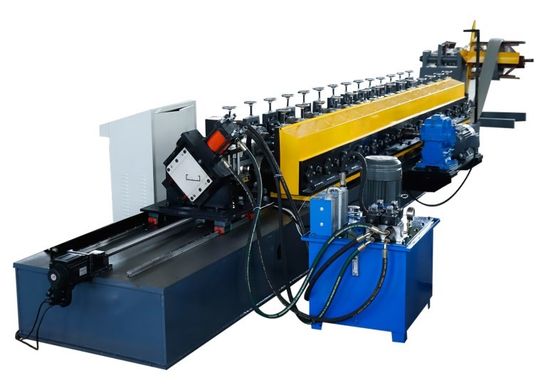

7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching 2

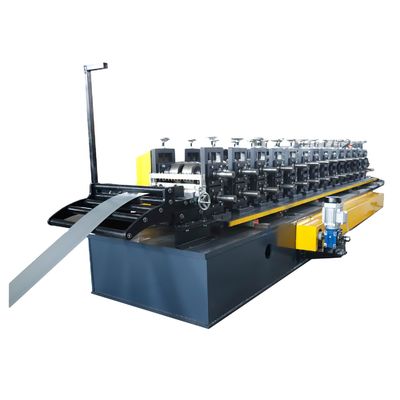

7.5KW C Purlin Roll Forming Machine C Channel Hydraulic Punching 3
