Blue Cr12 Color Steel Roll Forming Machine For Protection Board

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE,ISO
Model Number:	board

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	As discussion
Packaging Details:	as request
Delivery Time:	25-35 Days
Payment Terms:	T/T, L/C
Supply Ability:	80sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V 50Hz 3phases	Use:	Roof,board
Condition:	New	Weight:	According Order
Warranty:	One Year	Color:	BLUE OR AS THE CUSTOMER'S NEED
High Light:	Cr12 Color Steel Roll Forming Machine , Hydraulic Color Steel Roll Forming Machine , 4KW steel sheet making machine

Color Steel Roll Forming Machine Protection board

1.The chart of process flow:

Manual decoiler→ Feeding material into machine→Roll forming machine→

Measure length→Hydraulic cutting→Finished Products

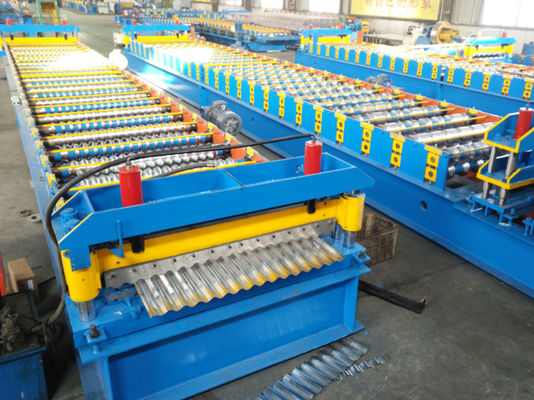

Blue Cr12 Color Steel Roll Forming Machine For Protection Board 0

2. How to cut to shape??→By hydraulic

Hydraulic system	Type of cutting	Hydraulic
	Cutting motion	stop cutting
	Cutting tolerance	±1mm
	Cutter	Cr12
	Cutter quantity	1 set
	Working pressure	15-20MPA
	Hydraulic oil	46#
	Hydraulic oil weight	50-100KGS
	Hydraulic power	4kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.

3. Can we cut to length and set quantity??→PLC control can do it!

Control Device	control	By PLC
	PLC language	English and Chinese (or as required)
	Brand	Delta from Taiwan
	PLC screen	Touch screen or text screen
	Coder	ENC-1-1-1T-24 from South Korea
	Function	Automatic length and quantity measurement,
