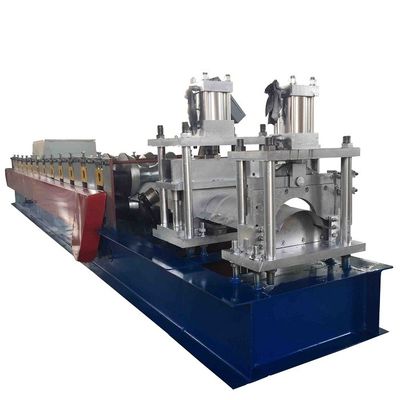

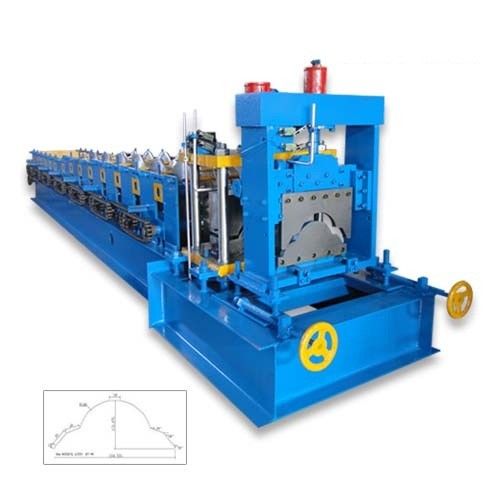

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12
video
50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: Ridge cap
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: as customer's request
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 60sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Tile Type: Colored Steel,Galvanized Steel (GL) Use: Produce Ridge Cap Tile
Warranty: 1 Year Thickness: 0.3-0.8mm
After-sales Service Provided: Video Technical Support,Online Support Control System: PLC System
High Light:

Metal Roof Ridge Cap Roll Forming Machine

,

50Hz Metal Roof Ridge Cap Roll Forming Machine

,

Cr12 roof tile forming machine

50Hz Metal Roof Ridge Cap Roll Forming Machine Cr12



Product Description:

Model number ridge cap roll forming machine
Rolled material 0.3-0.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width 1100mm
Feeding width 1250mm
Forming steps 11 stations
Roller 45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft 60mm
Main motor power 4 kw
Pump power 3 kw
Sprocket chain 1 inch
Drive type by chain
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic Syst



Detail Show:

1. main roll machine:
popular galvanized ridge roll forming machine for buyerpopular galvanized ridge roll forming machine for buyer

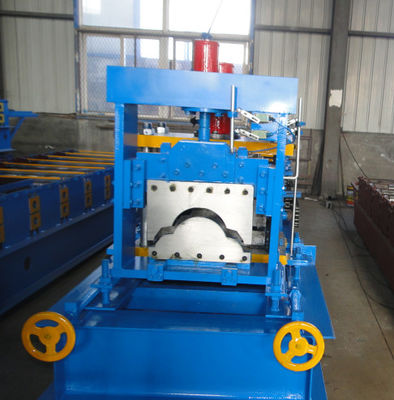

2. cutting system:
popular galvanized ridge roll forming machine for buyerpopular galvanized ridge roll forming machine for buyer
3. step-formed mechanism:(hydraulic)
popular galvanized ridge roll forming machine for buyerpopular galvanized ridge roll forming machine for buyer
4. decoiler and feeding:
popular galvanized ridge roll forming machine for buyer
5. PLC control box and hydraulic pump:
popular galvanized ridge roll forming machine for buyer
