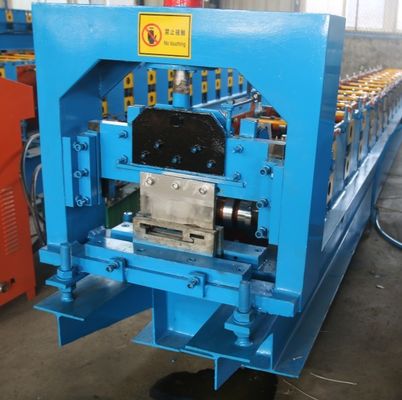

5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations

5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations

  • 5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations
  • 5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations
  • 5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations
5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Door frame
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: fit for shipping
Delivery Time: 30-50 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 45sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V,50Hz/60Hz Condition: New
Thickness: 0.3-1.5mm Warranty: One Year
Control: PLC Service: Online Support
High Light:

5T Door Frame Roll Forming Machine

,

25m/min Door Frame Roll Forming Machine

,

yellow steel frame roll forming machine

5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---cutting---product to stand



2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.



3. Technical parameters

1) inner tight decoiler



coil inner diameter 350mm--450mm
max width of coiling 600mm
max weight of loading 5000kg

5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations 0

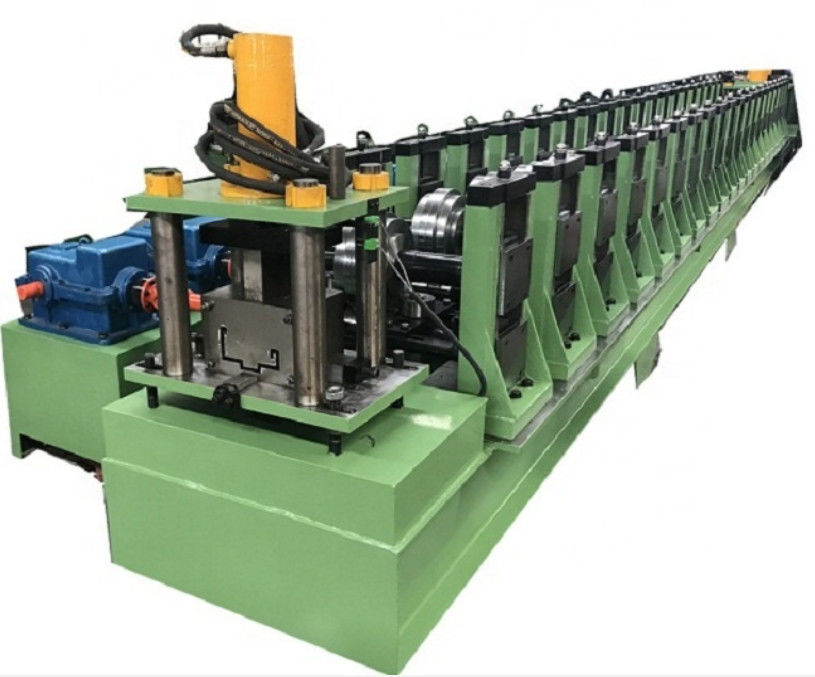

2) main forming machine

Shaft material 45# steel,bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 25m/min
Voltage 380v,50hz
Roller station 15

Window steel door frame roll forming machinery



Window steel door frame roll forming machinery

Profile

thickness:0.3--1.5mm

5T Door Frame Roll Forming Machine 25m/min 15 Roller Stations 3

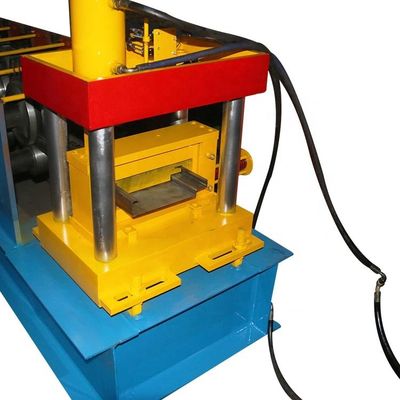

4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.no



5) control system

A. PLC: taida form Taiwan

B. Coder:from south korea



6) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

Window steel door frame roll forming machinery
