Dust Board Panel Roll Forming Machine 10m/min Production Line

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	Dust board

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for shipping
Delivery Time:	20-40work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V 50Hz 3 Phases	Condition:	New
Weight:	5 Tons	Tile Type:	Colored Glaze Steel
Warranty:	1 Year	Control System:	PLC
Highlight:	5.5kw Panel Roll Forming Machine , 10m/min Panel Roll Forming Machine , Dust board production line

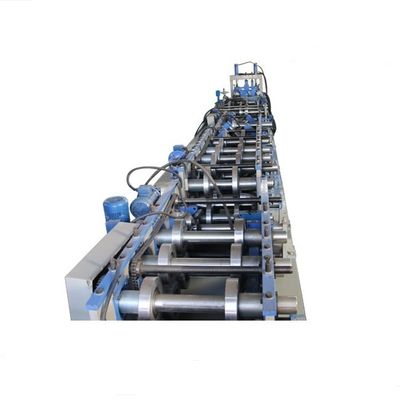

Dust Board Panel Roll Forming Machine 10m/min Production Line

The dust board production line is composed of decoiler,feeding machine,punch,

feeding pilot,spindle roll forming machine,forming shear,hydraulic system and

electrial control system. Production speed:10m/min.

Producing process sketch:

Dust Board Panel Roll Forming Machine 10m/min Production Line 0

decoiler	Manual type/ Hydraulic type
main roll forming machines	Steps: 12 stations Roller Material: 45# steel Voltage: 380V/50Hz. Line speed: 10 m/min
computer control cabinet	PLC TOUCH OR TEST
hydraulic System	5.5kw
cutting mechanism	mould cutting
counter	One counter gauges length, pulses, and decides length
of output table	It used to load the forming plate
