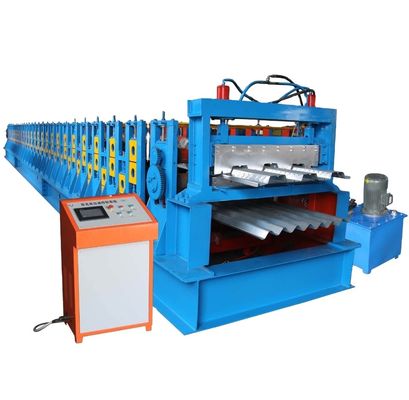

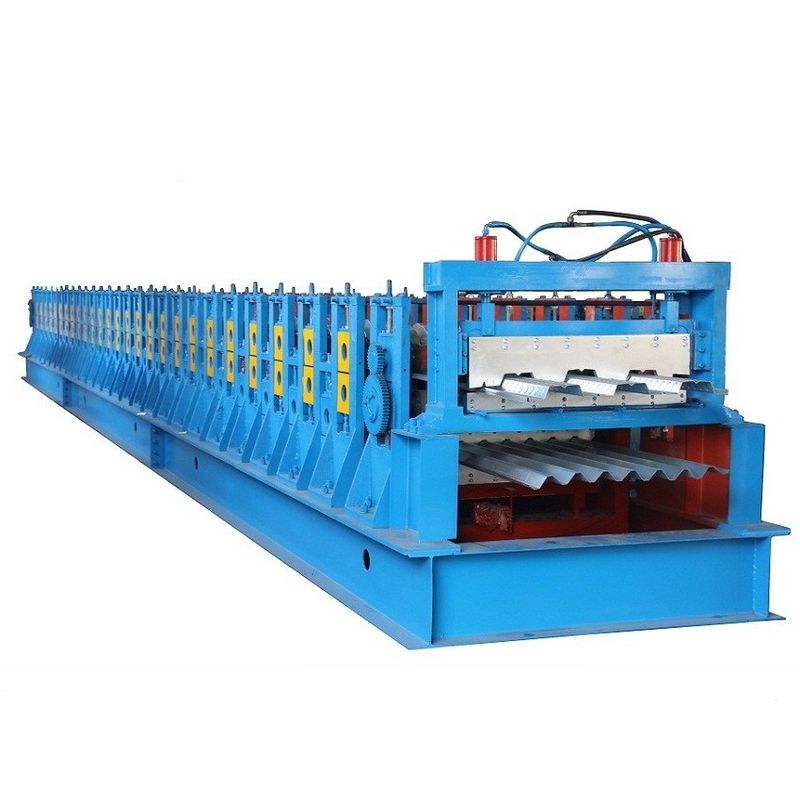

Double Layer Panel Roll Forming Machine Steel Floor Deck 22KW

Double Layer Panel Roll Forming Machine Steel Floor Deck 22KW

Parameters

(1) Material and Profile of Manufactured Goods

(2) Components of floor decking forming equipment :

Main Forming device

1) Model of frame: 350#

2) Shaft material: 45# steel, outer diameter 90mm

3) Roller material: #45 steel

4) Number of forming step:28 steps

5) 1 inches Chains transport

6) Forming speed:10 m/min

7) Main motor power:18.5kw

Ancillary equipment

1) PLC control box: 5.7inch touch screen, transducer imported from Mitsubishi of Japan

2) Decoiler: You can choice manual or full-automatic for decoiling

3) Hydraulic pump: 4kw or customized, Cr12 mould steel with quenched treatment, stable

the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life,

ensure product standard.
