Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling

Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling

  • Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling
  • Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling
  • Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling
  • Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling
Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: shearing machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: fit for shipping
Delivery Time: 20-30work days
Payment Terms: T/T, L/C
Supply Ability: 100sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Warranty: 1 Year
Control System: PLC Control System With Famous Brand Condition: New
Color: Blue Weight: About 3.5T
High Light:

CE Sheet Metal Shearing Machine

,

Blue Sheet Metal Shearing Machine

,

20m/min Hydraulic Sheet Metal Shear

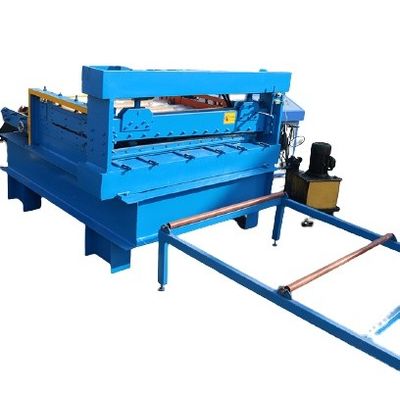

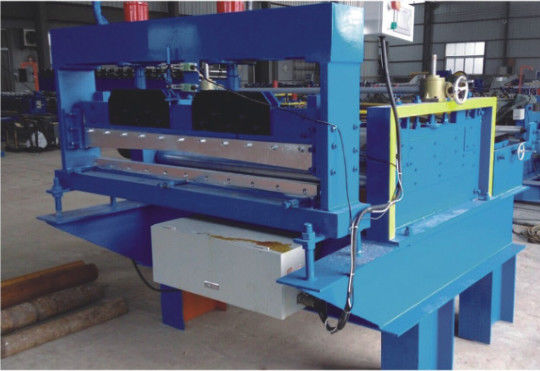

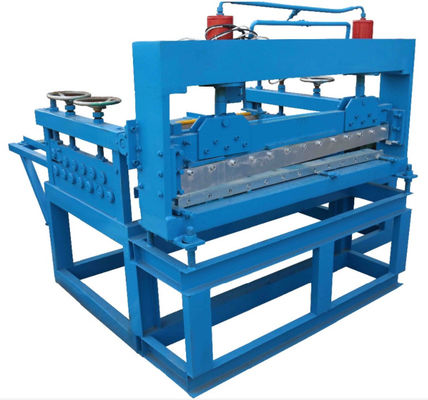

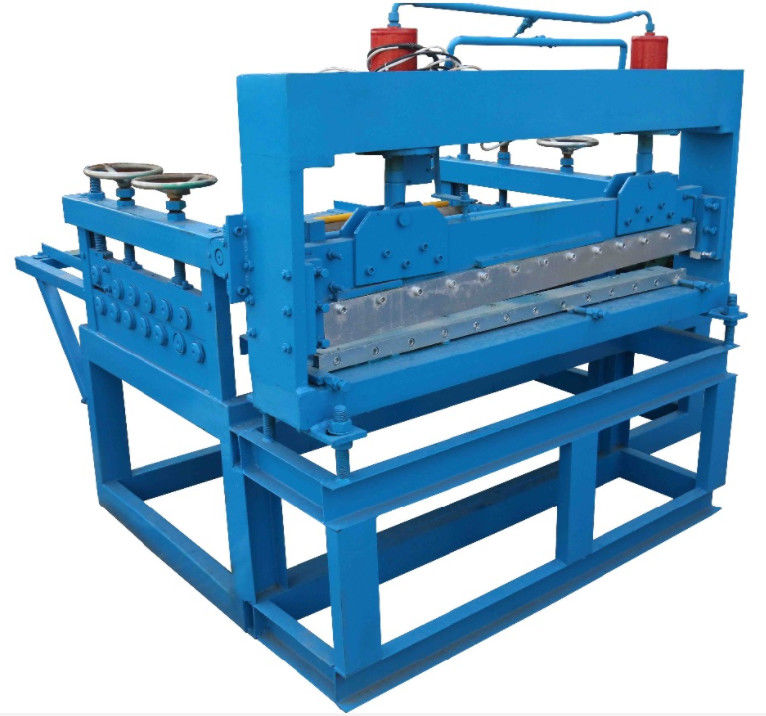

Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling



Introduce of the machine

This equipment can set the relevant parameters according the customer's requirements for the automatic cutting system, and it can shear arbitrary length of coil plate accurately. The advantages are high shearing speed and accuracy, save time and effort,and making the automation of coil plate leveling shearing.



1. Material

1) Width :2000mm

2) Thickness:0.3-3.0mm
2. Including equipment

1) 5T Hydraulic decoiler :1 set

2) Flatten and cutting machine :1 set

3) Auto conveyor table:1 set

4) Simple stand :1 set
3. Process 5T hydraulic decoiler -flatten and cutting machine-auto conveyor table
4. Hydraulic decoiler

1) Inner diameter :450-550mm

2) Out diameter 1200mm

3) Width 2000mm

4) Weight :5T

5) Motor :5.5kw

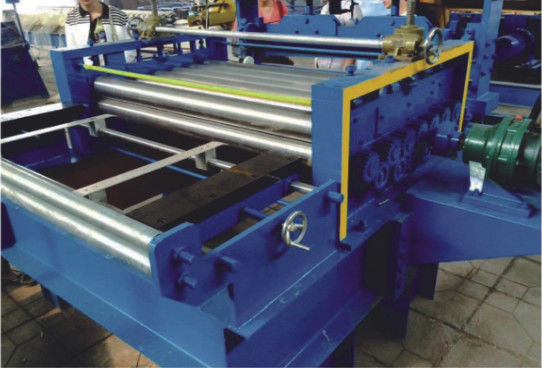

5. Flatten and cutting

1) Stations:Up6 bottom 7, diameter :90mm

2) Stations: Up 3 bottom 5,diameter:80mm

3) Material :40Cr

4) Motor:7.5KW

5) Speed:15-20m/min
6. Auto conveyor table 1 set



Hydraulic Sheet Metal Shearing Machine 20m/min Coil Plate Leveling 0
