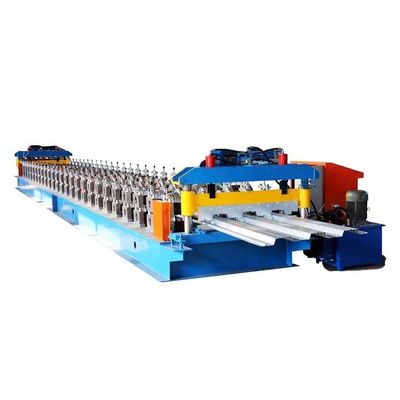

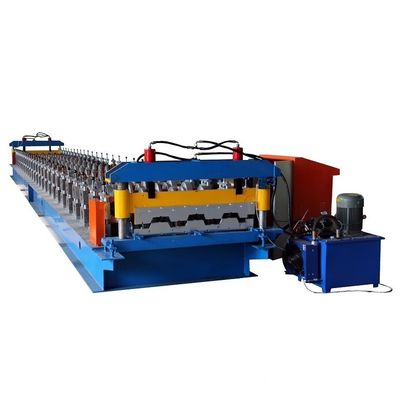

8T Tile Sheet Forming Machine 15KW For Steel Floor Deck

8T Tile Sheet Forming Machine 15KW For Steel Floor Deck

8T Tile Sheet Forming Machine 15KW For Steel Floor Deck
video
8T Tile Sheet Forming Machine 15KW For Steel Floor Deck
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: fit for shipping
Delivery Time: 20-40work days
Payment Terms: T/T, L/C
Supply Ability: 25sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: 8T Warranty: 1 Year
Control System: PLC After-sales Service Provided: Video Technical Support
High Light:

Steel Tile Sheet Forming Machine

,

15KW Tile Sheet Forming Machine

,

8T cold roll forming machine

8T Tile Sheet Forming Machine 15KW For Steel Floor Deck



1. Material and Profile :

deck floor forming machine

Type GI,PPGI THICKNESS O.6-1.5MM
Covered Width 600mm margin of error ±2mm
Wave Height 50mm margin of error ±1mm
Pitch Width 200mm margin of error ±1mm



2. Components and working process :

deck floor forming machine

Decoiler 1set Manual or Full-Automatic,5-15T
Main Forming Device 1set With motor power 15kw,column or middle plate style
Control System 1set 5.7inch touch screen ,delta plc
Cutting Device 1set SKD11 Cutting blade with 5.5kw hydraulic pump
Output Table 1pcs as request



8T Tile Sheet Forming Machine 15KW For Steel Floor Deck 0
