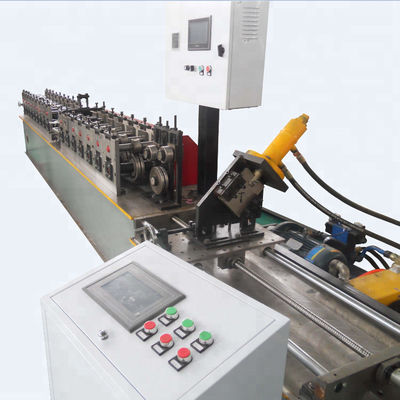

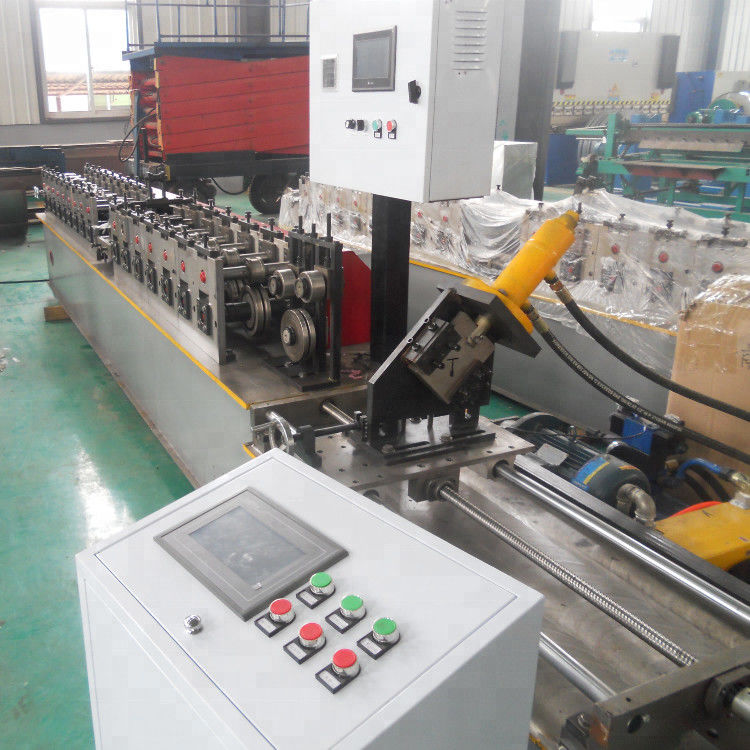

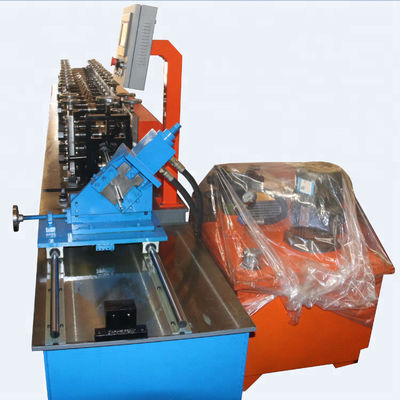

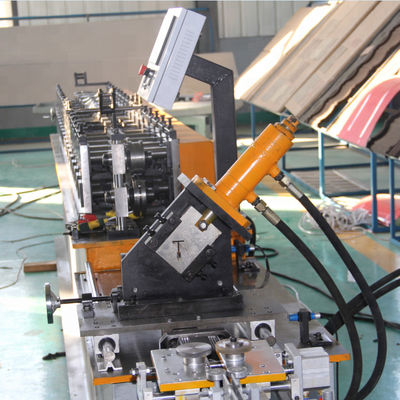

8m/min CE Stud And Track Roll Forming Machine T Grid Ceiling Former

Metal Stud And Track Roll Forming Machine 8m/min T Grid Ceiling Former

1. The chart of process flow:

Decoiling--active feeding---forming---measuring length---punching machine---

cutting---product to stand

2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic

system,product stand.

3. Technical parameters

1) Profile

thickness:0.3--0.8mm

2) inner tight decoiler

3) main forming machine

4)cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming.

5)control system

A.PLC: taida form Taiwan

B.Coder:from south korea

6)hydraulic system

A.advanced hydraulic system from taiwan

B.Power:3kw

4.Spare Parts

1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2).Rubber mat 1 pcs;

3).Bolt spanner 1 pcs
