VERTICAL TYPE LARGE SPAN ROLL FORMING MACHINE

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	ZX-305E,ZX-610E,ZX-680E,ZX-800E

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for ocean shipping
Delivery Time:	40-60 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	45sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

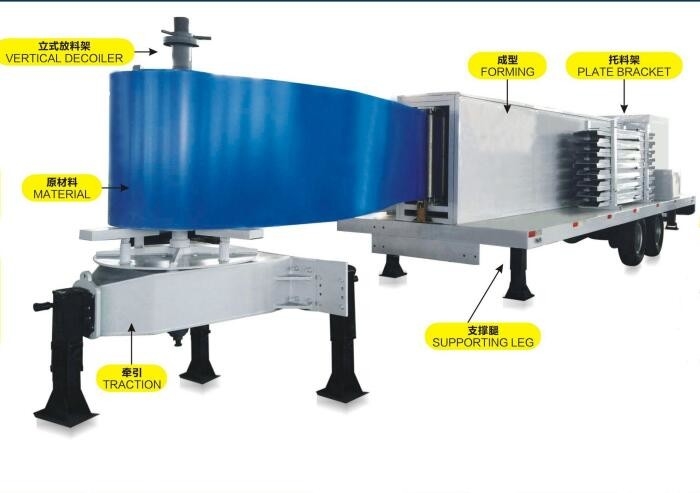

Decoiler:	Vertical Decoiler	Condition:	New
Warranty:	1 Year	Use:	Roof
Control System:	PLC	PLC Type:	Siemens
Material Of Roller Shafts:	45#steel	Cutting Power:	3.0kw
High Light:	300 Z Purlin Making Machine , Green Z Purlin Making Machine , 7.5KW metal roll forming machine

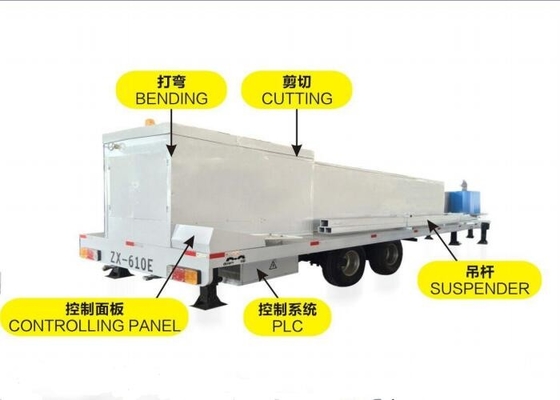

VERTICAL TYPE LARGE SPAN ROLL FORMING MACHINE

Features:

1. Low cost and high speed of construction recommend vertical type machine.

2. onestepforming,higherspeed,moreconvenien.

3. Saving50%1aborcost,fullyautomaticcontrol.

Technical parameters :

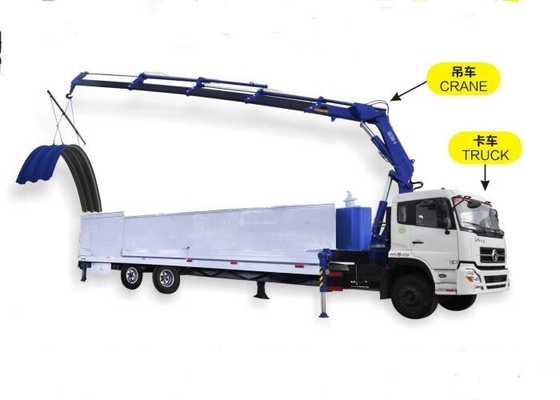

Crane Main Type	Trade Mark	Max.Lifting Monent	Max.Lifting Load	Max.working range	Max.Lifting Height	Boom Angle	Rotary Angle
Crane(8T)	HCTM	200kn.m	8000kg	12.2m	13m	0-75°	360°
Crane(10T)	HCTM	250kn.m	10000kg	16.4m	17.5m	0-75°	360°
Crane(10T)	HCTM	300kn.m	12000kg	13.4m	14.5m	0-75°	360°

VERTICAL MAIN TYPE	FEEDING WIDTH	EFFECTIVE WIDTH	DEPTH OF THE GROOVE	THICKNESS	PROPER SPAN	USAGE RATE
ZX-305E	600mm	305mm	109mm	0.6-1.6mm	4m-26m	51%
ZX-610E	914mm	610mm	203mm	0.6-1.6mm	7m-38m	66.70%
ZX-680E	1000mm	680mm	223mm	0.6-1.6mm	10m-36m	68%
ZX-800E	1250mm	800mm	320mm	0.6-1.6mm	15m-42m	64%
