Automatic Adjustable CZ Purline Cold Roll Forming Machine

Automatic Adjustable CZ Purline Cold Roll Forming Machine

  • Automatic Adjustable CZ Purline Cold Roll Forming Machine
Automatic Adjustable CZ Purline Cold Roll Forming Machine
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: C/Z
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: as customer's request
Delivery Time: 30-50 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 25sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Condition: New Type: Steel Frame & Purlin Machine,c Plus Z Design Cz Purlin Roll Form Machine
Voltage: 380V/50HZ 3Phase Production Capacity: 10-20m/min
Use: C&Z Warranty: 1 Year
After-sales Service Provided: Online Support,Video Technical Support Control System: PLC Touch/button Screen
High Light:

Adjustable Cold Roll Forming Machine

,

Automatic Cold Roll Forming Machine

,

PPGI CZ Purline Machine

Automatic Adjustable CZ Purline Cold Roll Forming Machine



C Z purlin forming machine can be designed with Z , that is CZ purlin forming machine, with different sizes of 100-300mm, three sets of punching, and raw material thickness of 1.5-3.0mm, which basically meets the needs of different purlins on the market.or only C purlin machine from 3 inch to 10 inch, or punch holes or what thickness of raw material.





Technical parameters :

NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 190-420mm
thickness 0.5-3mm
Yield stress 350-550Mpa
2 Product Cover width 80-300mm
Wave height 80-300mm
Pitch width 40-80mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/250-508mm
Max coil width 1000mm
Max capacity 15T
4 Levelling parts roller Diameter:90mm
No.45 steel with quenching
Forming stand 18
5 Punching parts Type Hydraulic punching
Model material GCr12
6 Main machine Roller 90mm
GCr15 chrome plated
Main machine structure Guide column or wallboard
7 Power requirement Main motor 11.5kw
Hydraulic pump 5.5kw

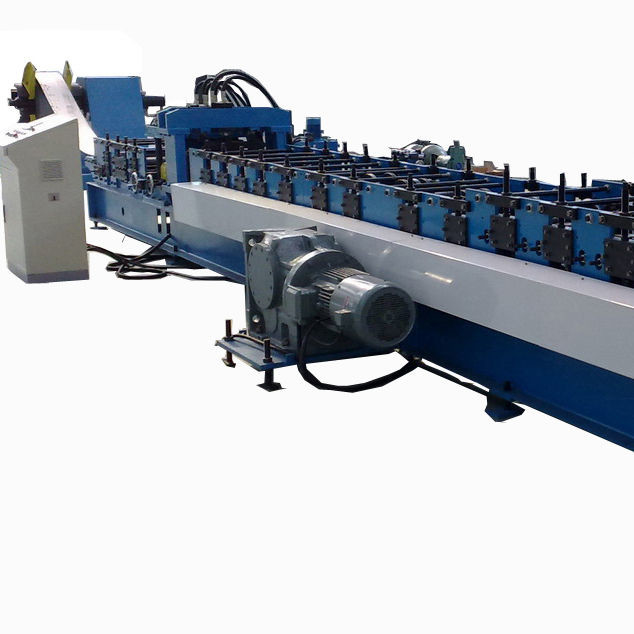

Automatic Adjustable CZ Purline Cold Roll Forming Machine 0

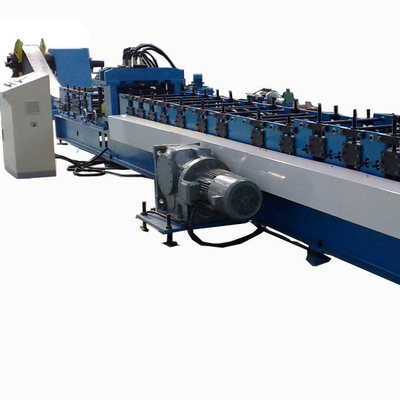

Automatic Adjustable CZ Purline Cold Roll Forming Machine 1
