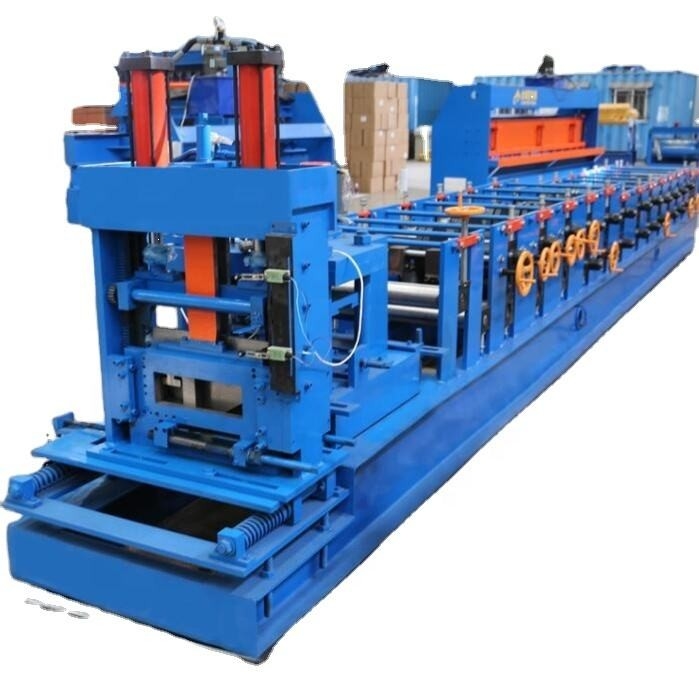

PLC Touch CZ Purlin Roll Forming Machine With Quenching

Product Details:

Place of Origin:	China
Brand Name:	Gracias

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for ocean shipping
Delivery Time:	40-60 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	45sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V/50HZ 3Phase	Condition:	New
Warranty:	1 Year	Use:	C&Z
Control System:	PLC Touch/button Screen	Color:	Client's Request
High Light:	PLC touch Z Purlin Making Machine , 20m/min Z Purlin Making Machine , 20m/min Z Purlin Forming Machine

Steel Strip Z Purlin Making Machine Green No.45 Steel With Quenching

Features:

1. Produce different purlin size without changing rollers or spacers.

2. No need changing cutter for different size.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range),help to save material

5. Optional Punch hole at any position of purlin web side and flange side

Technical parameters of steel strip purlin roll forming machine :

Main motor power	22 KW with Cycloidal reducer
Hydraulic station power	15 KW,Lichao of Shanghai
Hydraulic oil	36#40# abrade oil
Thickness of material	0.3mm~0.8mm
Electric tension	380V 3phase 50HZ
Material of roller	High-grade GCR15 Steel,quenched,heat treatment and hard chrome 0.07mm
Production speed	15-20m/min
Processing precision	within 1.00mm
Material of cutting blade	Cr12 Mov
Transmission Chain	1.2 inch double chain,Jindun of Hangzhou
Roller station	13-15 Rollers

NO.	ITEM	PARAMETER
1	Material	type	GI,PPGI
		Width	190-420mm
		thickness	0.5-3mm
		Yield stress	350-550Mpa
2	Product	Cover width	80-300mm
		Wave height	80-300mm
		Pitch width	40-80mm
3	Decolier	Type	Automatic with coil car
		Suitable coil OD/ID	1200/250-508mm
		Max coil width	1000mm
		Max capacity	5T
4	Levelling parts	roller	Diameter:90mm
		roller	No.45 steel with quenching
		Forming stand	15
5	Punching parts	Type	Hydraulic punching
5	Punching parts	Model material	GCr12
6	Main machine	Roller	90mm
		Roller	GCr15 chrome plated
		Main machine structure	Guide column or wallboard
7	Power requirement	Main motor	7.5kw
7	Power requirement	Hydraulic pump	4kw
