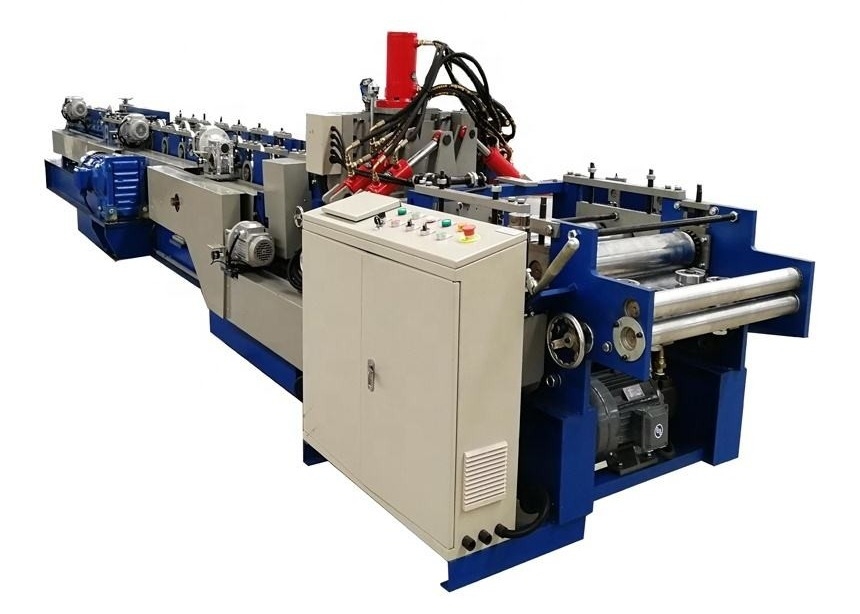

Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame

Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame

Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame
video
Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: fit for shipping
Delivery Time: 20-40work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V/50HZ 3Phase Condition: New
Type: Steel Frame & Purlin Machine Warranty: 1 Year
Control System: PLC After-sales Service Provided: Video Technical Support
High Light:

Automatic CZ Purlin Roll Forming Machine

,

PLC CZ Purlin Roll Forming Machine

,

Galvanized Steel Frame Roll Forming Machine

Automatic Quickly Change Steel Frame Channel Punch Holes



Part details Item Name Specification
Material Raw material Galvanized steel
Thickness 1.5-3 mm
Machine Roller station 18
Shaft diameter 80 mm
Shaft material 45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC Bearing steel
Machine size About 10×1.7×1.7 m
Machine weight About 9 ton
Machine color As customer' request
Working speed 10-30 m/min
Cutter Hardness 50-65 HRC
Cutting tolerance ± 1 mm
Material Cr 12
Operate Hydraulic cutting
Power Driving way Chain 1.5*2 inch
Main power 22 kw
Pump power 5.5 kw
Voltage

380v/50HZ,3P or customize

as customer' request
Control system PLC brand Delta made in Twaiwan
Screen Touchable screen
Language Chinese and English or add language as customer need
Decoiler Operation Manual
Weight capicatity 3 ton
Price Free as gift
Receiving table Operation Manual
Length 3 m
Price Free as gift





Technical parameters:

NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 190-420mm
thickness 0.5-3mm
Yield stress 350-550Mpa
2 Product Cover width 80-300mm
Wave height 80-300mm
Pitch width 40-80mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/250-508mm
Max coil width 1000mm
Max capacity 15T
4 Levelling parts roller Diameter:95mm
No.45 steel with quenching
Forming stand 18
5 Punching parts Type Hydraulic punching
Model material GCr15
6 Main machine Roller 90mm
GCr15 chrome plated
Main machine structure Guide column or wallboard
7 Power requirement Main motor 11kw
Hydraulic pump 7.5kw



Product display:

c shape ,z shape ,y shape,w shape ,u shape and more...

Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame 0

Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame 1Automatic CZ Purlin Roll Forming Machine Quickly Change Steel Frame 2
