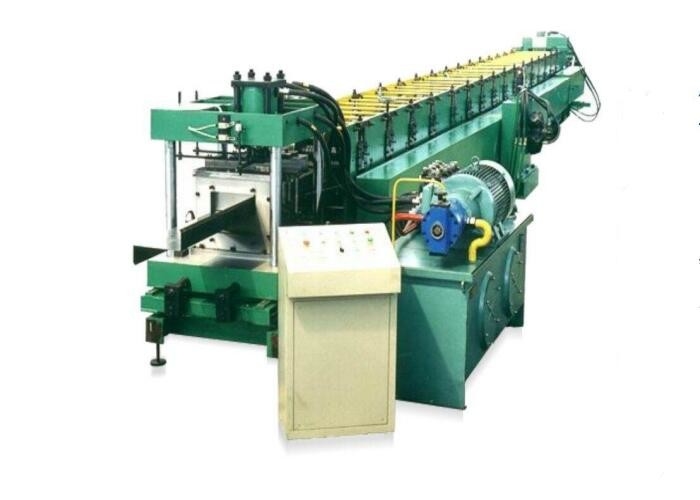

Automatic 30kw Z Section Purlin Machine 16m/Min 450mm

Automatic 30kw Z Section Purlin Machine 16m/Min 450mm

  • Automatic 30kw Z Section Purlin Machine 16m/Min 450mm
Automatic 30kw Z Section Purlin Machine 16m/Min 450mm
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: Z
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: fit for ocean shipping
Delivery Time: 20-60 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 45sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Main Motor Power: 30kw Speed: 16 – 18m/min
Roller Station: 14 – 20 Material Width: 150 – 450mm
Touch Panel (HMI): Cr12 Speed Of Line: 0-12meters/min
Material Of Roller Shafts: 45#steel
High Light:

Automatic Z Section Purlin Machine

,

16m/min Z Section Purlin Machine

,

450 mm Z Section Purlin Machine



More Waves Glazed Roof Tile Forming Machine





Z Purlin roll forming machine is the most popular and has an extensive use in

Metal Building Systems, Huge RoofingSolutions, Construction and Renovation Projects etc.





Technical parameters:



Main motor power: 30KW
Molding machine roller numbers: 16R
Linear velocity of molding machine:10m/min Width of plank: 160-300mm
Rolling thickness: 2-3mm
The external dimensions of the frame:14mx1.5mx1.3m
The weight of molding machine: 18T
Molding material scissors: Cr12
Computer PLC: Germany Siemens ST200



Automatic 30kw Z Section Purlin Machine 16m/Min 450mm 0



NO. a b c d Expanded dimensions
1 140 62 57 2-3 500
2 160 62 57 2-3 520
3 180 77 72 2-3 570
4 200 77 72 2-3 590
5 220 77 72 2-3 610
6 240 77 72 2-3 630
7 250 92 87 2-3 670
8 300 92 87 2-3 720



Automatic 30kw Z Section Purlin Machine 16m/Min 450mm 1

















Tag:

Hydraulic CZ Purlin Roll Forming Machine,

5T CZ Purlin Roll Forming Machine,

ISO cold formed steel machine
