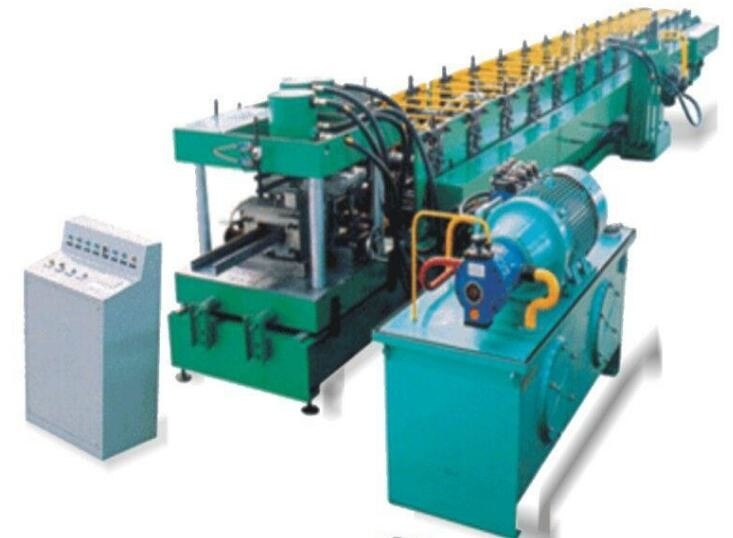

Automatic C Section Purlin Roll Forming Machine 22kw 18m/Min 16R

Automatic C Section Purlin Roll Forming Machine 22kw 18m/Min 16R

  • Automatic C Section Purlin Roll Forming Machine 22kw 18m/Min 16R
Automatic C Section Purlin Roll Forming Machine 22kw 18m/Min 16R
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: Z
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: fit for ocean shipping
Delivery Time: 20-60 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 45sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Main Motor Power: 22kw Molding Machine Roller Numbers: 16R
Linear Velocity Of Molding Machine: 18m/min Width Of Plank: 80-300mm
Rolling Thickness: 2-3mm The External Dimensions Of The Frame: 12m×0.5m×1.3m
Computer PLC: OMRON
High Light:

C Section Purlin Roll Forming Machine

,

18m/min C Purlin Roll Forming Machine

,

C Purlin Roll Forming Machine 22kw



More Waves Glazed Roof Tile Forming Machine





Technical parameters:



Main motor power:22KW
Molding machine roller numbers:16R
Linear velocity of molding machine:18m/min
Width of plank:80-300mm
Rolling thickness:2-3mm
The external dimensions of the frame:12m×0.5m×1.3m
The weight of molding machine:12T

Computer PLC: OMRON





NO. a b c d Expanded dimensions
1 80 40 15 2-3 170
2 80 50 15 2-3 190
3 100 50 15 2-3 210
4 120 50 20 2-3 240
5 140 50 20 2-3 260
6 140 60 20 2-3 280
7 150 50 20 2-3 270
8 150 60 20 2-3 290
9 160 50 20 2-3 280
10 160 60 20 2-3 300
11 160 70 20 2-3 320
12 180 60 20 2-3 320
13 180 70 20 2-3 240
14 200 65 20 2-3 350
15 200 70 20 2-3 360
16 220 70 20 2-3 380
17 220 80 20 2-3 400
18 240 70 20 2-3 400
19 240 80 20 2-3 420
20 250 70 20 2-3 410
21 250 80 20 2-3 430
22 300 70 20 2-3 460
23 300 80 20 2-3 480



Automatic C Section Purlin Roll Forming Machine 22kw 18m/Min 16R 0
