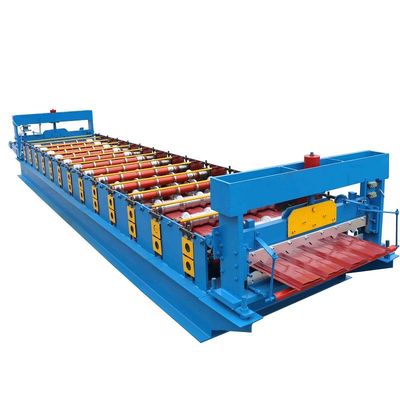

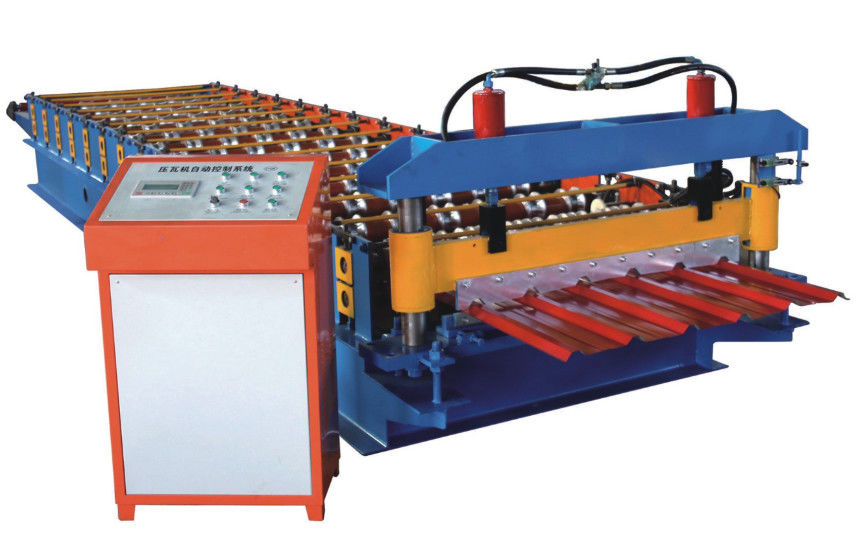

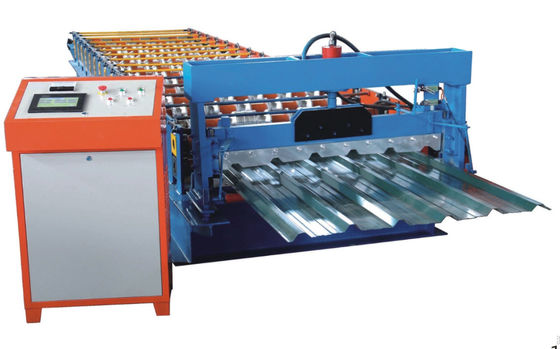

CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting

CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting

CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting
video
CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: color steel forming machine 860
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: fit for ocean shipping,40GP*1
Delivery Time: 40 work days
Payment Terms: T/T, L/C
Supply Ability: 100sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Tile Type: Colored Steel
Use: Roof Condition: New
Power(w): 4+4KW Warranty: One Year
Weight: According Order Control System: PLC
High Light:

860 Metal Roof Roll Forming Machine

,

CE Metal Roof Roll Forming Machine

,

Hydraulic roof panel roll former

roof panel steel roll forming machine metal roof roll forming machine

Features:

Lightweight, high impact strength and simple to use.
Deep corrugations provide bold aesthetic shadow effects.

The strength of design allows longer spanning or greater allowable loads.

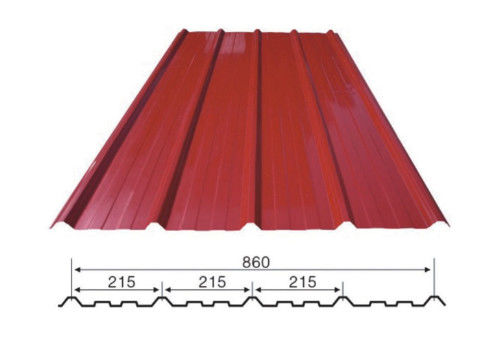

Various corrugation profiles, including standard, mini, tile effect, box profile, etc.

Offer Custom-manufactured service to satisfy your special needs.

Offer roof materials in galvanised steel, prepainted galvanised steel, also available in galvalume

steel and prepainted galvalume steel.

Offer roof accessories to help you install roof or wall panel, such as roof fasteners, roof panel

machine and roof cutting tool.



Raw material
Processing material Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm) 0.3-1.0mm or as your customized
Material of rollers High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts 45# steel
Diameter of shafts 70mm or as your customized
Forming speed 8-12 m/min or as your customized
Under frame 350 H-beam
Sidewall 16mm
Connect bar 25mm, zinc plated
Forming steps 10-18 or as your customized
Control system Delta PLC and Inverter
Suitable power 380V, 50 Hz, 3 phase or according to your need
Drive mode Chain and sprocket, chain size 1 inch
Main motor 3-5.5kw
Hydraulic pump station 3-5.5kw
Cutting model Hydraulic profile cutting
Dimension of the machine 7.5m-11m×1.5mm×1.2m
Weight of the machine 3.5 ton -6 ton

Technical specifications

1. automatic inner tight decoiler

a. coil inner diameter 450mm-550mm

b. maximum width of coiling 1250mm

c. maximum weight of loading 5000kg                                                                                                     CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting 0CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting 1

CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting 2

Control system

Operate language English ,touch screen,Delta frequency and PLC                                                                                                 CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting 3 CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting 4

CE 860 Metal Roof Roll Forming Machine Hydraulic Profile Cutting 5
