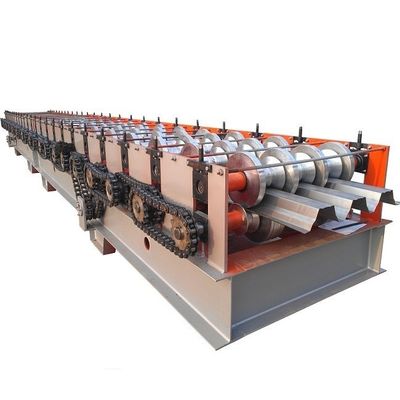

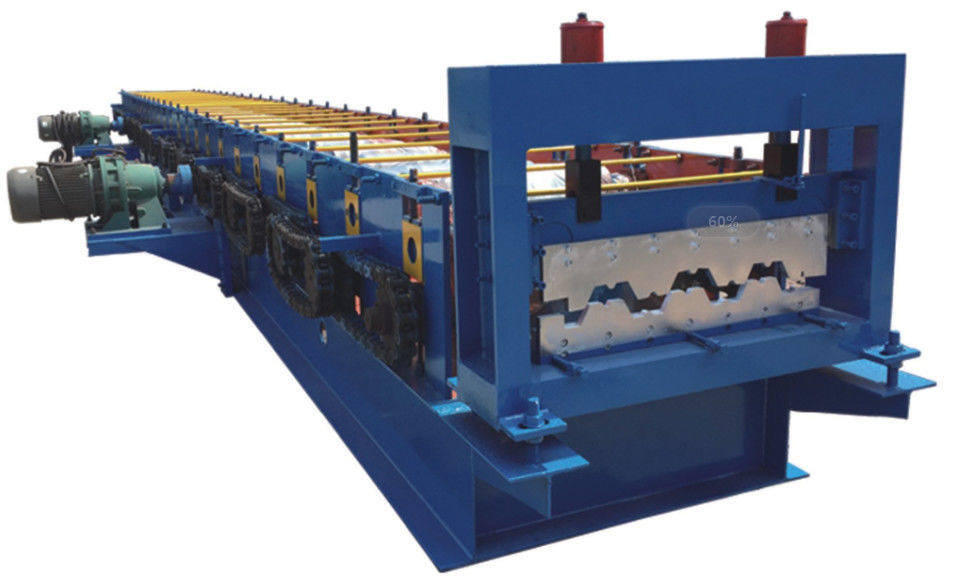

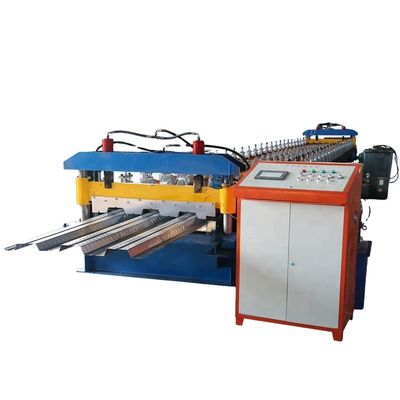

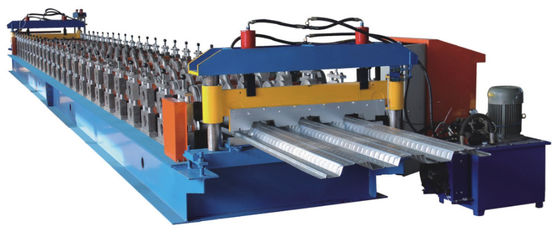

ISO Metal Sheet Forming Machine 5m/min For Floor Deck
The introduction of equipment
| 1 |
Suitable material
|
color steel sheet or galvanized sheet |
| 2 |
Thickness of raw material |
0.8-1.2mm |
| 3 |
Uncoiler loading capacity |
5000kg (can be increased to 10ton ) |
| 4 |
Working speed |
12-15m/min |
| 5 |
Voltage |
380V,3phase,50Hz or as per customer’s requirements |
| 6 |
Power requirement |
Main motor power: 18.5KW (Depend on final design )
Hydraulic station power: 5.5KW (Depend on final design )
|
| 7 |
Controlling system |
Mitsubishi PLC & converter |
| 8 |
Machine’s size |
about 28m*1.5m*1.6m (Depend on final design ) |
Technical specifications
Manual inner tight decoiler
a. coil inner diameter 450mm-550mm
b. maximum width of coiling 1200mm
c. maximum weight of loading 5000kg
Main forming machine
a. number of forming steps depend on the machine
b. material of shaft45# steel . Outer diameter90mm
c.main motor power3kw
d. The speed of forming:8-10/min
Hydraulic cutter
a. material of blade:Cr12 mould steel quenched treatment60-62
b. cutting system :adopt advanced hydraulic drive, after forming automatic cut,
no distort, no wasting , high safe factor.(main motor stop cutting)
The electrical control system
a. The Brand of display:Taida
b. The main computer (PLC):Tai Da DVP14
Hydraulic system
a. Adopting advanced hydraulic system of Tai Wan
b. Power:3kw
The equipments coating,package
a. the coating adopt international general shade-guide
b.The package :simple waterproof package.
The spare parts of the equipment
a. the element of easy damaging :contactor conk: 2 unit ,fuse: 4 set
b. the hydraulic sealing up cushion: 1set
c. Bolt spanner: 1 set
Note for use and maintenance
1) before use,you must check whether all connections are steady,whether bolts
and nuts are tightinstallation.when start the machine,you must make sure there
are enough lubrication oil in the case.
2) when start the machine commissioning,the machine should run idle,then
check it carefully such as noise,vibration and whether the oil window works
smoothly,whether every parts movement coordination.
3) You must cut off power when install the mould,move the motor belt and
big gear by hand,turn the workbench and make sure the slide up to the highest point.
Final products
