840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine

840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine

840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine
video
840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: 840 color steel roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: as customer's request
Delivery Time: 25 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 60sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Tile Type: Colored Steel
Warranty: 1 Year Usage: Color Steel Construction,Roof Tile Panel
Normall Thickness: 0.3-0.6mm Control System: Taiwan Delta
Color: Blue Or As Per You Wish After-sales Service Provided: Online Support,Video Technical Support
High Light:

840 Roofing Sheet Roll Forming Machine

,

Roofing Sheet Roll Forming Machine

,

6m/min Corrugated Roof Sheet Making Machine

840 roof tile zinc making galvanized corrugated roofing sheet making machine



Features


• Easy operate
• Carriage with hardened gear or chain
• Magnetic linear encoder for direct measuring
• Precision length and width control
• Motor brake for secure positioning
• Left or right side mounting



1. Technical parameters :

1. Name 840 trapezoid glazed tile roof sheet made in china
2. Raw Materil Galvanizd steel
3. Thickness 0.3-1mm or as request
4. Roller Station 9-15 Steps
5. Shaft Material 45#Steel
6. Roller Material 45#steel heat treated
7. Transport Chain or gear
8. Forming Speed 6m/min
9. Motor Power 5kw
10. Voltage 380V 50HZ 3Phase
11. Cutting System Hydraulic Cutting
12. Control System Detal PLC,
13. The whole line :Manual decolier, roll forming machine, hydraulic station, PLC control system, Hydraulic cutter, run-out-table

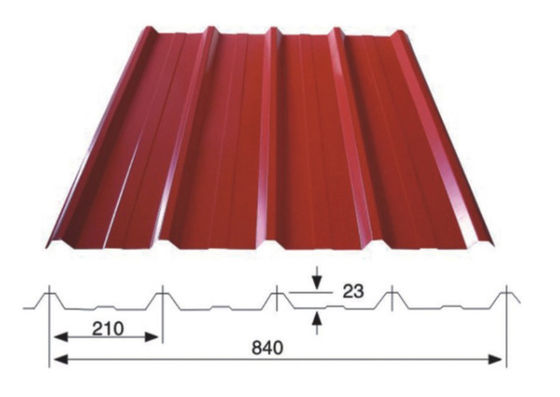

840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine 0

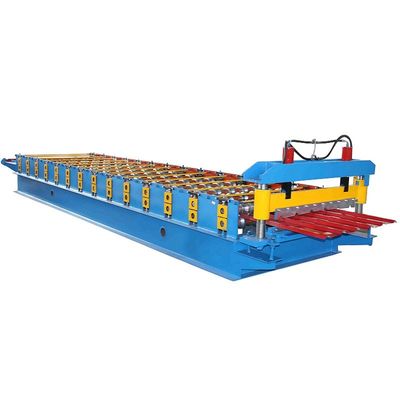

840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine 1

2. Details show :

a. Feeding and decoiling

840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine 2

b. Forming

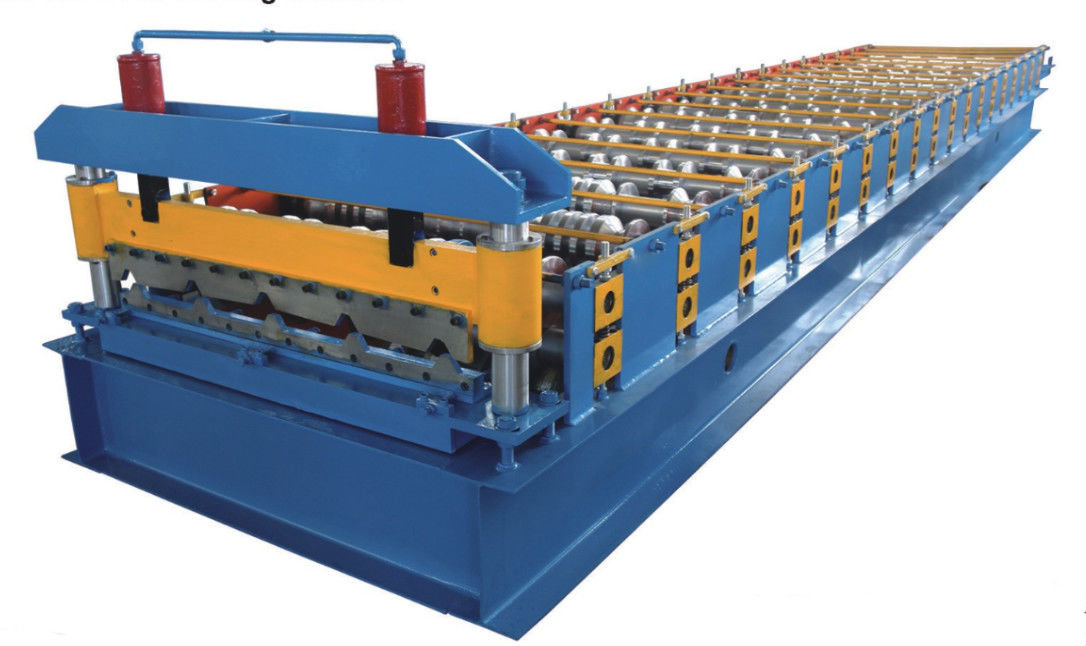

840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine 3

Tag:

7.5KW Color Steel Roll Forming Machine,

blue metal roofing roll former,

1200mm Color Steel Roll Forming Machine
