Car Panel Roll Forming Machine Cr12 Glazed Steel Tile

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	ISO,CE
Model Number:	Car panel

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	As discussion
Packaging Details:	fit for shipping
Delivery Time:	30-50 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	60sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V 50Hz 3phases	Tile Type:	Steel,Colored Glaze Steel,Colored
Warranty:	One Year	Raw Material Thickness:	0.3MM-0.8MM
Condition:	New	Weight:	5 Tons
Control System:	Automatic Customized( Standard Delta)	After-sales Service Provided:	Online Support
High Light:	Car Panel Roll Forming Machine , Cr12 Panel Roll Forming Machine , 5T glazed tile roll forming machine

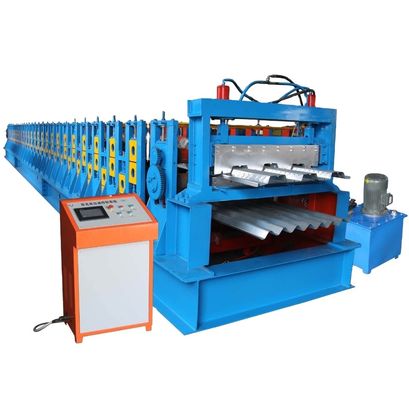

Car Panel Roll Forming Machine Cr12 Glazed Steel Tile

Rolled material	0.5-1.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	688/700/718.5/750/760/992/960/914/915
Feeding width	1000/1200/1250mm
Forming steps	18-30 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	90mm
Main motor power	22 kw
Pump power	5.5 kw
Sprocket chain	2 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
