5T Panel Roll Forming Machine 8/min Metal Floor Deck

5T Panel Roll Forming Machine 8/min Metal Floor Deck

5T Panel Roll Forming Machine 8/min Metal Floor Deck
video
5T Panel Roll Forming Machine 8/min Metal Floor Deck
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: Floor deck
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: fit for shipping
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 30sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3 Phases Weight: 5 Tons
Tile Type: Steel Warranty: 1 Year
Condition: New Control System: PLC
High Light:

5T Panel Roll Forming Machine

,

8/min Panel Roll Forming Machine

,

Metal floor deck roll forming machine

5T Panel Roll Forming Machine 8/min Metal Floor Deck



1. The Chart of Process Flow

Decoler -active feeding-forming -caculate length --automatic cutting --product

Metal Floor Decking Roll Former /Steel Decking Floor Sheets Machines /Decking Sheets Machine for Construction

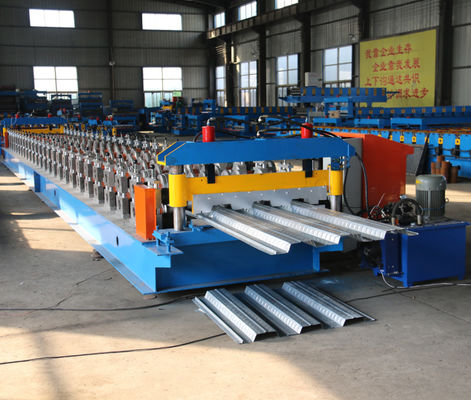

2. Picture of floor deck machine and product
Also, we can can how the product looks like after forming from roll forming machine and

how the floor deck roll forming machine looks like.
Both the machine and product are the heavy one, especially the floor deck roll forming machine,



Metal Floor Decking Roll Former /Steel Decking Floor Sheets Machines /Decking Sheets Machine for Construction



3. The whole production line of floor deck roll forming machine includes as below:

Decoiler 1 set
Main forming machine 1 set
PLC control station 1 set
Hydraulic oil pump 1 set
Product receiving table 1 set

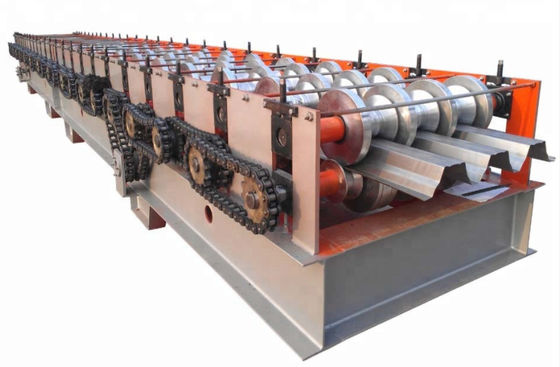

4. Main forming machine

a. number of forming steps depend on the machine

b. material of shaft 45# steel . Outer diameter 90mm

c. main motor power 3kw

d. The speed of forming:8-10/min



Metal Floor Decking Roll Former /Steel Decking Floor Sheets Machines /Decking Sheets Machine for Construction







Metal Floor Decking Roll Former /Steel Decking Floor Sheets Machines /Decking Sheets Machine for Construction

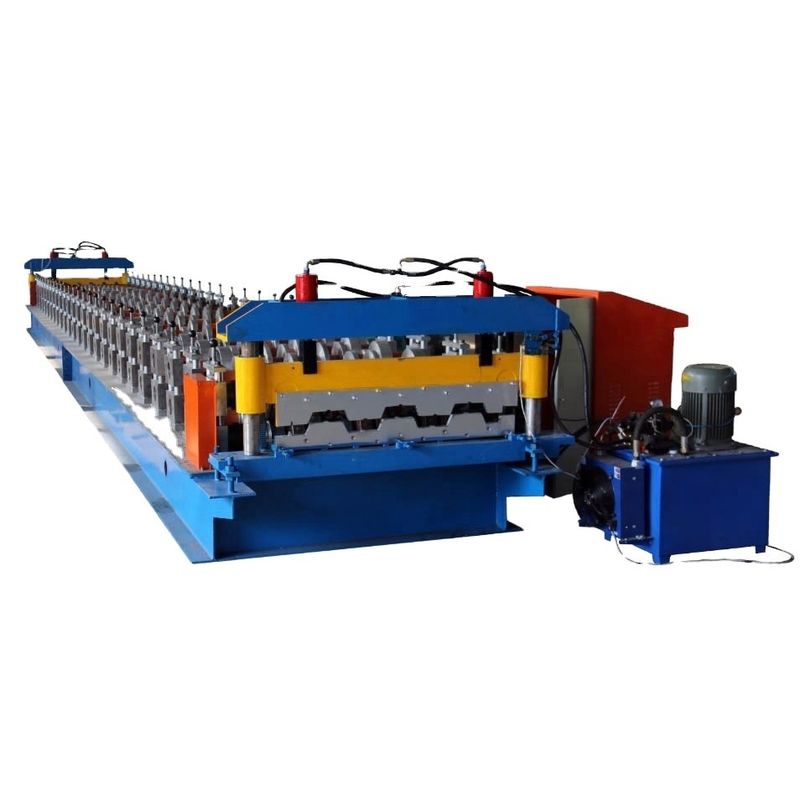

5. hydraulic cutter

a. material of blade:Cr12 mould steel quenched treatment 60-62

b. cutting system :adopt advanced hydraulic drive, after forming automatic cut,

no distort, no wasting , high safe factor.(main motor stop cutting)



6. the electrical control system

a. The Brand of display:Taida

b.The main computer (PLC):Tai Da DVP14

Metal Floor Decking Roll Former /Steel Decking Floor Sheets Machines /Decking Sheets Machine for Construction

7. Hydraulic system

a. Adopting advanced hydraulic system of Tai Wan

b. Power: 3kw

5T Panel Roll Forming Machine 8/min Metal Floor Deck 5
